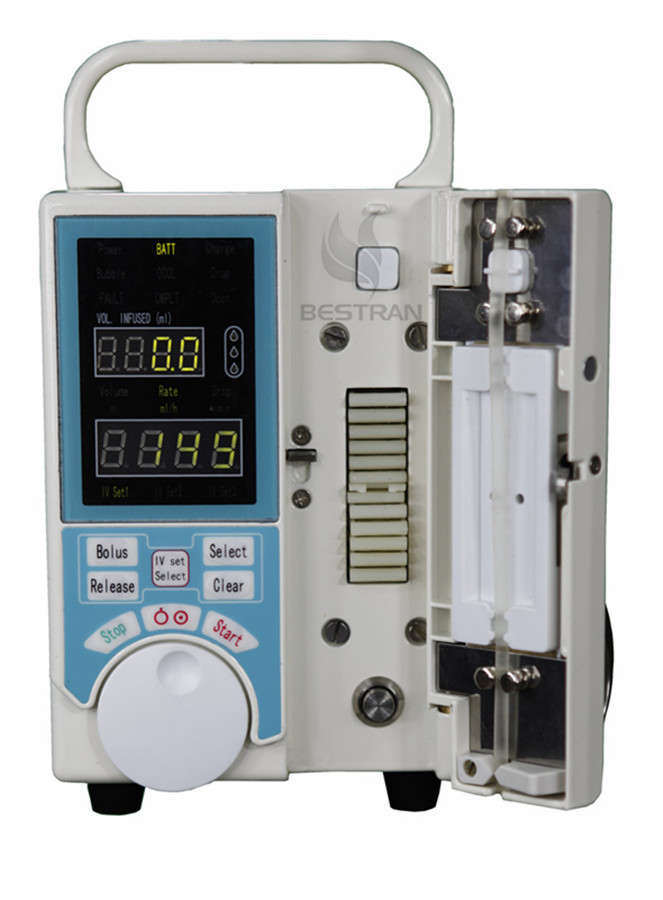

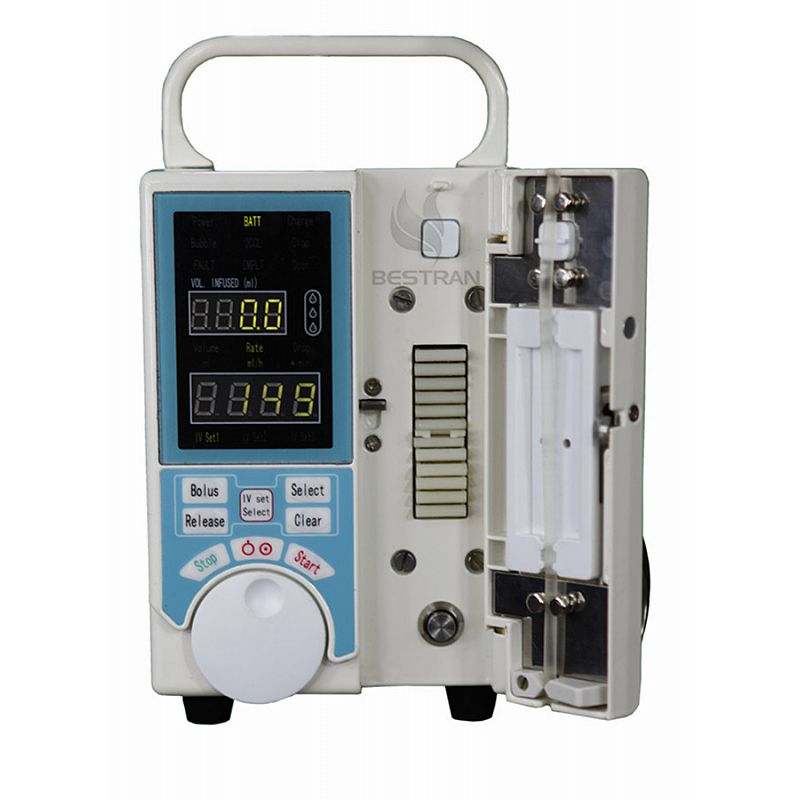

Single-Channel Infusion Pump

Single-Channel Infusion Pump

BT-SA213

Infusion Principle: Peristaltic Pump
Range of flow rate: 1.0~1200ml/h
Infusion rate step by: (0.1ml/h step 1.0~99.9ml/h;1ml/h step 100ml/h above)
Purge/bolus rate: 800~1200ml/h
Infused volume:1-9999ml
Applicable IV sets: Comply with all brands after calibration
Accuracy: ±5%
Bubble sensitivity: Detestability of air bubble ≥40uL
Occlusion pressure: 100KPa±20KPa
Visible & audible alarms: Air in line, Occlusion, Door open, VTBI completion, Low battery, Malfunction,Drop abnormal, Low temperature,Pause overtime ,Electrical circuit jam,I.V set dislocation,Air detect circuit error,Motor control error,Battery exhausted
K.V.O rate: 1ml/h with flow rate no higher than 10ml/h;  3 ml/h with flow rate higher than10ml/h
Internal battery:Internal DC12V Ni-MH battery can continuously run over 4 hours at average rate.
Power: 100-240VAC 50/60Hz
Power consumption:18VA
Working environment: Temperature: +5--+40°C ;Atmospheric pressure: 20%--90%; Relative Humidity:   700hPa--1060hPa
Classification:Type BF, Class I continuous volumetric infusion pump with internal battery; IPXI
Applied standards:165mm(length)×120mm(width)×210mm(height) ; 2.5Kg
Standards:CE0123 Certificate from TUV
