25kW X-ray Radiograph System

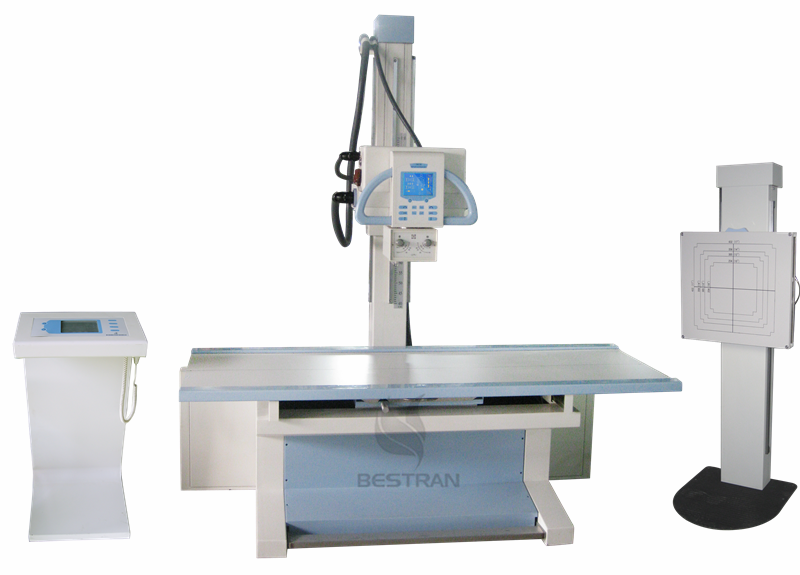

BT-XR02 High Frequency X-ray Radiograph System


Specification:

Item

content

Output power

25kW

Main inverter frequency

40kHz

X-ray tube

Rotary anode, dual-focus,

large focus: 1.3mm, small focus: 0.6mm,

Tube thermal capacity: 900kJ (1200kHu)

Rotary anode speed

2800rpm

Tube current

200mA

Tube voltage

40kV-125kV

mAs

0.4-360mAs

Table radiography grids

Grid density:103L/INCH;Grid ratio:10:1;Focusing distance:120cm;Stationary type:15"×18"

Chest stand radiography grids

Grid density:103L/INCH;Grid ratio:10:1;Focusing distance:150cm;Stationary type:18"×18"

Power supply

380V  50Hz, Capacity: ≥40kVA

Operation method

close-table graphic program controlled LCD touchable screen operation; wireless remote control exposure


Basic Configuration:

1, new integral radiography table (with pillar)                    one unit

2, combined high-frequency high-voltage X-ray generator         one set

3, Colored LCD touch screen control box                       one unit

4, Control system (with software)                              one set

5, Chest stand (with imported filter grids)                        one unit


Structural performance:

Table size

2000×760mm

Table height

≤700mm

Table transverse movement

210mm

Table longitudinal movement

900mm

Grids cassette holder movement

≥560mm

X-ray tube assembly center rotation

≥±90°

Rotation of the pillar

4×90°

Axial rotation

0-35°

SID

450-1200mm

Pillar movement along the table

≥1370mm

Limited time of analog light beam opening

About 30s

Film size

5"×7"-14"×17"(Table radiography)

Film size

5"×7"-17"×17"(Chest stand radiography)

Chest stand up and down movement

472~1470mm


Feature:

1. It is installed with close-table graphical colorful LCD touch screen and wireless remote control exposure, which makes the operator easy to use.

2. We incorporate the latest compact high-frequency and high-voltage X-ray generator, which ensure superior image quality, while the skin dose is low, to protect the patient better.

3. Adopt the technology of kV and mAs numeral closed loop control, real-time control of the microprocessor, which ensures the accuracy and repeatability of the output dose.

4. Be equipped with radiography parameter of multi-part, multi-posture, multi-body, adult -child physical characteristic, the operator can modify and save the parameter by himself, which makes the operation more conveniently.

5. Leading domestic high power combined high frequency high voltage X-ray source and high frequency inverter power supply, which can reduce energy loss from outside HV generator and cable. It makes good quality X-ray, beautiful appearance and convenience.

6. Possess multiple automatic protection and fault clue function, which makes the operation safer and more reliable.

7. The radiography table can float in any direction, electromagnetic braking, position the patient more convenience and accuracy.

8. X-ray generator component can move round the axis of X-ray generator, cross arm and Pillar stand , be convenient with side and slanting direction projection and radiography of patient on the stretcher.

9. Be equipped with the chest stand, which is used in the radiography of the head, chest, belly, pelvic cavity, backbone and periphery.

10. Control console of graphic program controlled LCD touch screen is optional, which can set the radiography parameter and exposure in another room.
