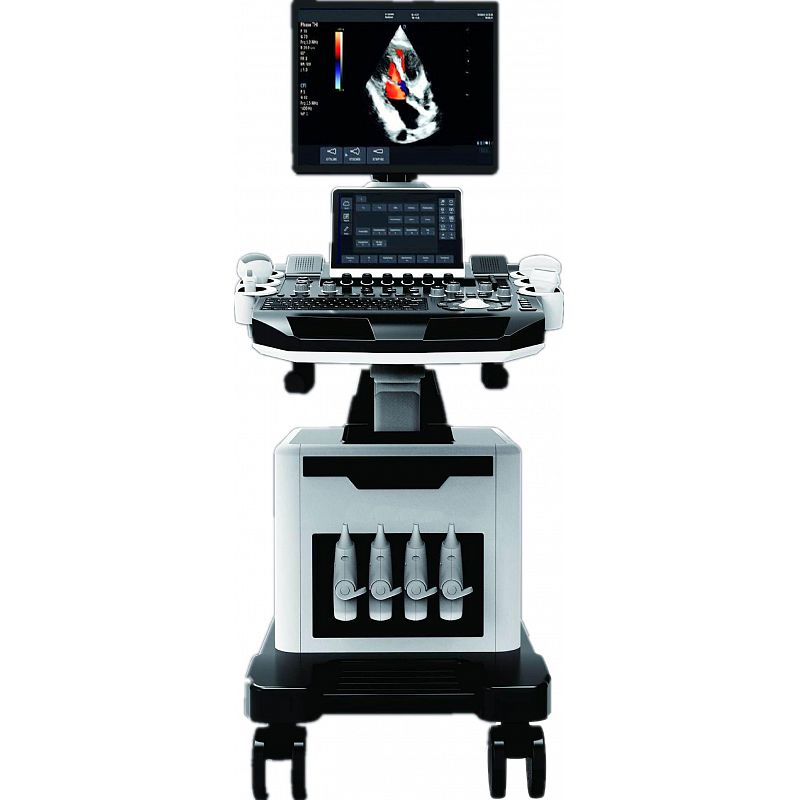

Trolley color doppler Ultrasound Diagnostic System

Trolley color doppler Ultrasound Diagnostic System


1

Summary of main specifications and system of cart type color Doppler ultrasound

1.1

Trolley type all digital color Doppler ultrasonic mainframe

1.2

Ultrasonic host operating system: Windows operating system

1.3

Applications

Abdomen, obstetrics, gynecology, heart, urinary system, small organs, superficial, blood vessels, pediatrics, newborns, musculoskeletal

1.4

Probes

Convex probe, Tran-vaginal probe, Linear probe, Micro-convex probe, Cardiac probe,4D Volume

probe

1.5

Applications and report

Abdominal,OB,GYN,Cardiac,Urinary,Small Parts,Superficial, Vascular, Pediatrics, Advanced measurement software packages, report software packages, case management software packages, etc.

☆1.6

carotid artery intima measurement thickness(IMT

☆1.7

Automatic spectral envelope measurement

1.8

Full digital transmission and reception of beam synthesizer

1.9

Color Doppler imagingC

1.10

Pulse Doppler ImagingPW

☆1.12

Coherent Contrast imagingCCI

1.12

Continuous wave Doppler imagingCW

☆1.13

B/C/D Real-time three synchronous imaging

☆1.14

Power Doppler imagingPDI

☆1.15

Direct power Doppler imagingDPDI

1.16

M mode imaging

☆1.17

Anatomic M mode imaging

☆1.18

Color Doppler M mode imaging

1.19

Elastography

☆1.20

Tissue Doppler imagingTDI

☆1.21

Strain rate imaging (SRI)

1.22

Tissue harmonic imagingTHI

1.23

Fusion harmonic imagingFHI

1.24

Speckle Reduce imagingSRI

☆1.25

Panoramic imaging

1.26

Deflection imaging

1.27

Trapezoidal imaging

1.28

Adaptive velocity optimization

☆1.29

Free hand 3D

1.30

Real time 3D imaging3D/4D

1.31

DICOM3.0

1.32

Monitor≥19 inchhigh definition ultrasonic display

1.33

≥10 inch touch screen

1.34

Physical clipboard: save the image on the left side of the screen, which can be directly saved or deleted.

1.35

The system has the function of on-the-spot upgrade

1.36

Presupposition: for different inspection of the viscera, preset the inspection conditions for the best image, reduce the adjustment of the operation, and the commonly used external adjustment and combination regulation.

1.37

Probe interface: 4

1.38

Chinese and English System, Chinese and English input, optional

1.39

Depth≥360mm

1.40

Extended imaging

2

Probes

2.1      Convex probe

Fundamental Frequency2.0MHz/2.3MHz/2.5MHz/3.0MHz/3.5MHz/4.0MHz/4.6MHz/5.0MHz/5.4MHz,

Harmonic Frequency

4.0MHz/4.6MHz/5.0MHz

2.2

Linear probe

Fundamental Frequency4.0MHz/4.6MHz/5.0MHz/6.0MHz/7.0MHz/8.0MHz/9.2MHz/10.0MHz/12.0MHz/13.3MHz

Harmonic Frequency

8.0MHz/9.2MHz/10.0MHz,

2.3 Trans-vaginal probe

Fundamental Frequency

3.0MHz/3.5MHz/4.0MHz/5.0MHz/5.4MHz/6.0MHz/7.0MHz/8.0MHz/10.0MHz

Harmonic Frequency

6.0MHz/7.0MHz/8.0MHz

2.4 Micro-convex probe

Fundamental Frequency

3.0MHz/3.5MHz/4.0MHz/5.0MHz/5.4MHz/6.0MHz/7.0MHz/8.0MHz

Harmonic Frequency

6.0MHz/7.0MHz/8.0MHz

2.5 Cardiac probe

Fundamental Frequency1.7MHz/1.9MHz/2.1MHz/2.5MHz/3.0MHz/3.4MHz/3.8MHz/4.2MHz/5.0MHz

Harmonic Frequency

3.4MHz/3.8MHz/4.2MHz

2.6

4D Volume probe

Fundamental Frequency

2.0MHz/2.5MHz/3.0MHz/3.3MHz/3.7MHz/4.0MHz/5.0MHz/6.0MHz

Harmonic Frequency

4.0MHz/5.0MHz/6.0MHz

3

2D imaging mode

3.1

Gain0100Step 2 adjustable

3.2

TGC8 segment adjustable

3.3

Maximum focus point≥7, which can be moved throughout the whole process.

3.4

Speckle reduction0-55 level

3.5

Space Synthesis0-22 levelLiner probe: 3 levelcardiac probe:0

3.6

Dynamic30-18035 levelstep 5 adjustable

3.7

Line densitylowmiddlehigh3 level

3.8

Frame correlation0-4,4 level

3.9

Noise reduction0-55 level

3.10

Edge Enhancement0-55 level

3.11

Sound power2-10, 9 level

3.12

Grey scale0-67, 67 level

3.13

False color0-6767 level

3.14

Image styleSoft-Comparison2 level

The screen has real-time display of voice power, probe frequency, dynamic range, pseudo color, gray scale and other 11 parameters can be adjusted

4

Color Doppler imaging mode

4.1

Blood gain0-100Step 2

4.2

Parameter displayVelocityVariance

4.3

B-RestrainB/W restrain):0-7, 7 level

4.4

Speed Through0-8, 8 level

4.5

Sampling number6-24, 7 level
