ICU Ventilator

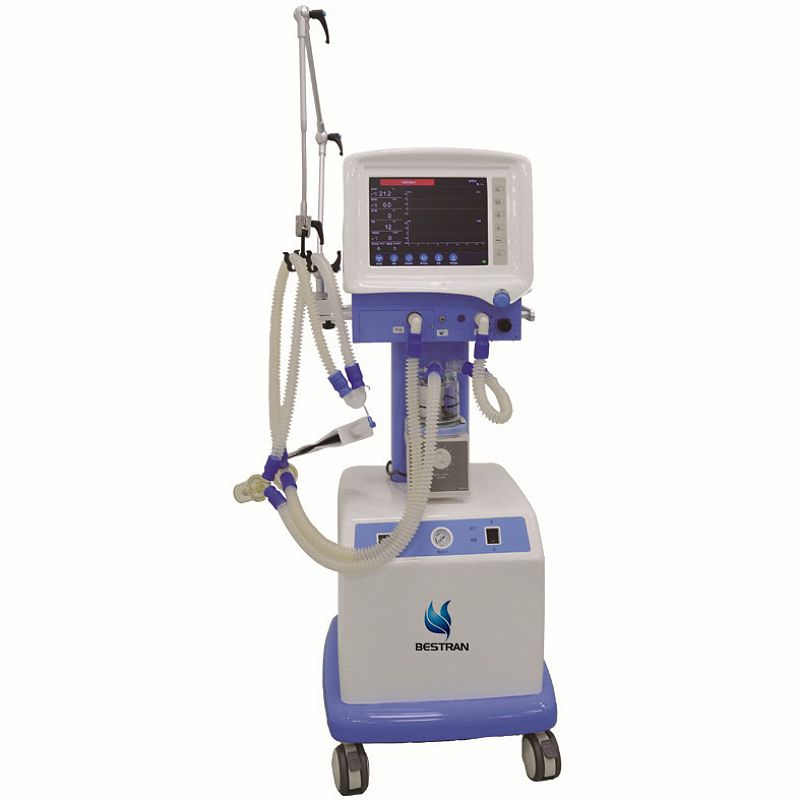

BT-S1100 ICU Ventilator
Application：
The ventilator is suitable for various kinds of medical institutions for cardiopulmonary resuscitation respiratory support. Acute respiratory failure caused by various reasons or incomplete oxygenation dysfunction. Intra-operation, post-operation respiratory support, other respiratory treatment.
Trust Points
l Simplicity: easy to use, easy to move with 4 wheels.
l Choice: adapt the equipment to your patients and procedures freely
l Patient Centered Ventilation: Precision in an anesthesia ventilator, from conventional ventilation to advanced modes, including 8 modes: IPPV; A/C; PCV; SIMV; SPONT/CPAP;PSV;SIGH;MANU.
l Designed and manufactured by Perlong Medical with over 23 years experience in this area.
l Flexible configurations to suit your needs.
l International standard and advanced technology suitable for wide range use.
l Compact interface and big screen give you better operating experience.
l Over 2,000 units installed in the world.
Features
l 12.1” TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.
l Recycle breathing pipe, ensure easy operating and keep tidy.
l Multiple working modes such as volume control and pressure limit, adapt to wide range patient.
l Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.
l Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;
l Real time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included.
l Stable and low noise air compressor, create quiet work environment for doctors.
Safety
l Three level alarming system, visual and sound alarm information.
l With lots of alarming, reminding and protection functions.
l Advanced power management control technology.
l With built-in backup power source, when outside power source goes off, back-up power source starts to work.
l Self-check before running, eliminate system mistake.
l Separate design of electric and gas, keep safety running of ventilator.
Specifications
|
Ventilation modes: |
IPPV, A/C, PCV, SIMV, SPONT/CPAP, PSV,SIGH,MANU |
|
Ventilator parameter ranges |
|
|
Tidal volume(Vt) |
0 ～ 2000mL |
|
Frequency (Freq) Oxygen concentration |
1bpm ～ 100 bpm 21%-100% |
|
I/E |
4:1～1:8 |
|
PEEP |
0cmH2O ～ 40 cmH2O |
|
Pressure Limit |
20 cmH2O ～ 100 cmH2O |
|
Monitored Parameters |
|
|
Frequency (Freq) |
0 /min ～ 100 /min |
|
Tidal volume(Vt) |
0 mL ～ 2500 mL |
|
Oxygen concentration |
15 % ～ 100 %
|
|
Oscillographs display: |
|
|
P-T(pressure – time) |
|
|
F-T(flow – time) |
|
|
P-V loop (pressure – volume loop) |
|
|
Size 1st Wooden case packing size（main engine）：L560*W 560*H 605mm , GW：35KG ; NW：17KG 2nd Wooden case packing size（air compressor）：L670*W700*H 1160 mm , GW：79KG ; NW：46.2KG
Alarm and protection |
|
|
The AC power failure alarm |
Power failure or no connection |
|
Internal battery backup low voltage alarm |
≤11.3±0.3V |
|
No tidal volume |
No tidal volume within 6s |
|
High Minute Volume alarm LowMinute Volume alarm |
5L/min-99L/min 1L/min-30L/min |
|
High Airway pressure alarm Low Airway pressure alarm High oxygen concentration alarm Low oxygen concentration alarm |
20cmH2O-100cmH2O 0cmH2O-20cmH2O 19%-100% 18%-99% |
|
Continuous pressure alarm |
(PEEP+1.5cmH2O) over 16s |
|
Suffocation warning Fan error Oxygen deficit |
5-60s Show on screen Show on screen |
|
The maximum limited pressure |
＜12.5 kPa |
|
Working conditions |
|
|
Gas source |
O2,AIR |
|
Pressure |
280kPa-600kPa |
|
Voltage |
-220V±22V |
|
Power frequency |
50Hz±1Hz |
|
Input power |
900VA(with air compressor) 250VA(without air compressor) |
