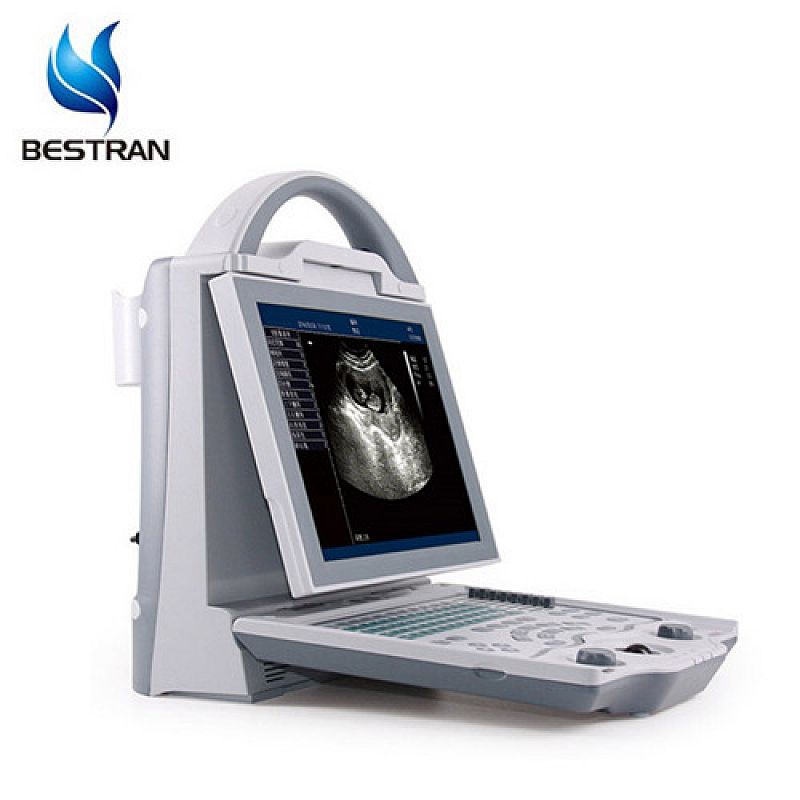

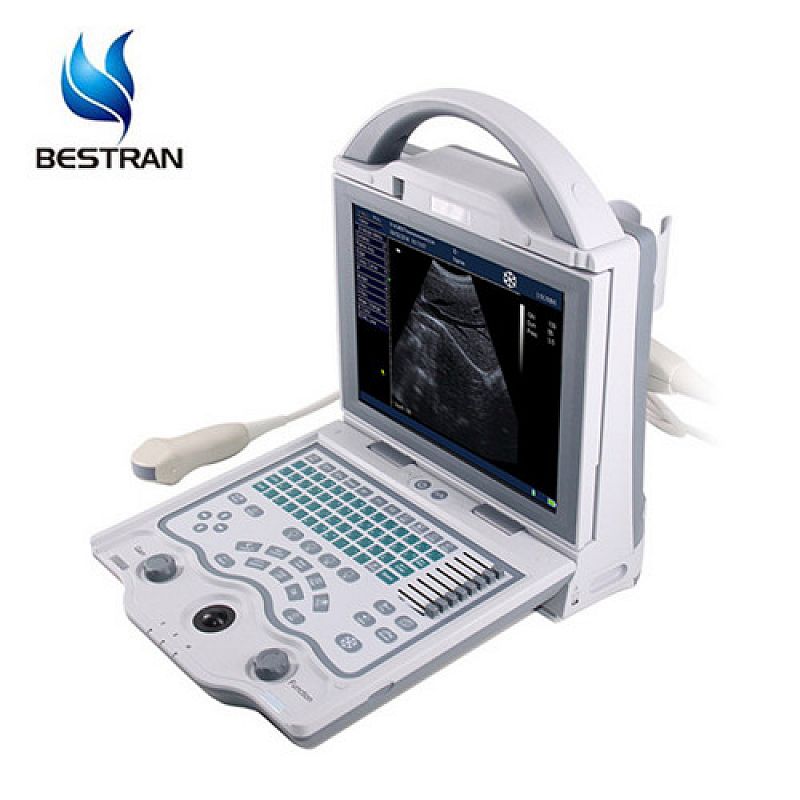

Human Ultrasound Scanner Machine

Human Ultrasound Scanner Machine


Tech Parameters
10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle

Display mode
Standard:3.5MHz convex probe
Option 1:7.5MHz linear probe
Option 2:6.5MHz trans-vaginalprobe
Option 3:6.5MHz micro-convex probe
Option 4:lithium battery
Option 5:video recorder
Option 6:trolley

Tech Parameters:

10.4 high resolution color LED backlight display, with high contrast and wide viewing angle

Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.

Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese

Two probe sockets, auto-identify different optional probe

Body markstotal 64 kinds body marks indicating probe position

Display modeB2B4B B/MM

Adjustable depth: 10 grades, max depth to 236mm



Gray scale256

8 steps intelligent TGC

 Frame frequency: 30 frames /second

8 kinds pseudo colors

Image storage: 16G hard disk to permanently store more than 20000 frames imageswithout loss when power off.

Cine loop256 frames

Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)

the gravel software package with real-time position line measurement

Normal measurement: distanceperimeter, area, volume, angle, length and area stenosis ratio measurement.

Cardio measurementDepth, slope, heart rate, cycle

Gynecology measurement and analysis: gynecology general measurement and gynecology report.

OB measurement including: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report.

Urology measurement and analysis: residual urine volumem, prostate volume, and urology report .

One-key store: concise and practical;

One-key reviewfast, practical image review function;

One-key Print

One-key Transfer the current frozen image to net workstation to complete its image text report and print directly;

Concise and practical, easy operation. The system includes network workstation to complete data & report management (You dont need to invest more to buy extra ultrasound working station)

Unique One-key-light keyboard function for black room use;

Display brightness adjustable

Dual TV output: PAL/NTSC, can connect video printer when necessary

Power supply100-240V1.2-0.6A  frequency50-60Hz

Power supply adaptor outputDC12.8V 3.0A

Main unit weight4.5kgwithout accessories);

Main unit dimension256×150×326mmL×W×H);



Main basic configuration

Main unit                    1pc

3.5MHz convex probe          1pc

Power supply adaptor          1pc

Reticle   1pc;

Two probe sockets


Optional parts

Optional probes

    6.5MHz multi-frequency trans-vaginal probe(through vagina)

6.5MHz micro-convex probe for small animals

    7.5MHz multi-frequency linear probe

7.5MHz multi-frequency cavity probe (through anus)

Battery charger

Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh


Video printerUP-897MD

Ethernet Switch
