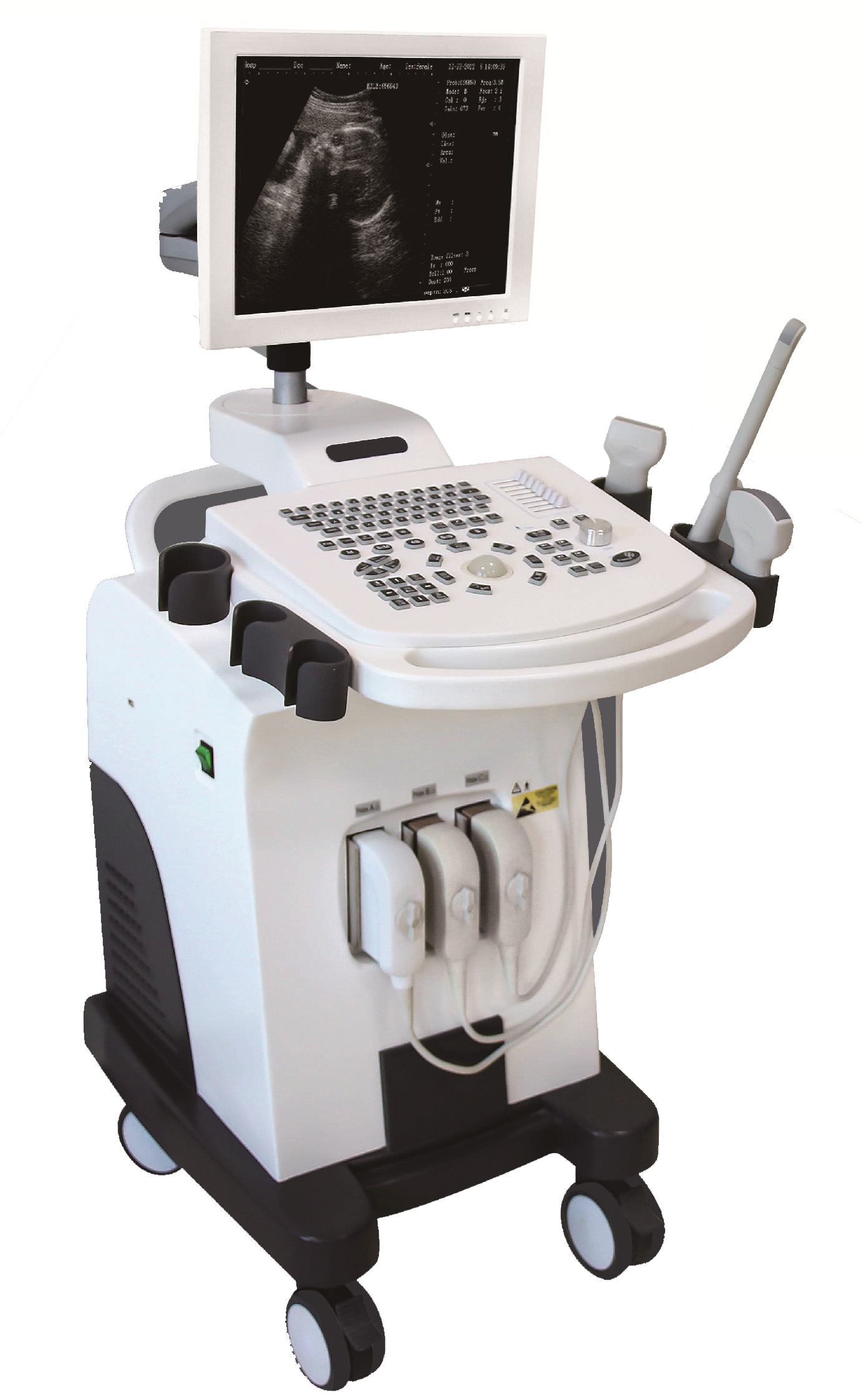

Full-digital Trolley Ultrasound Machine

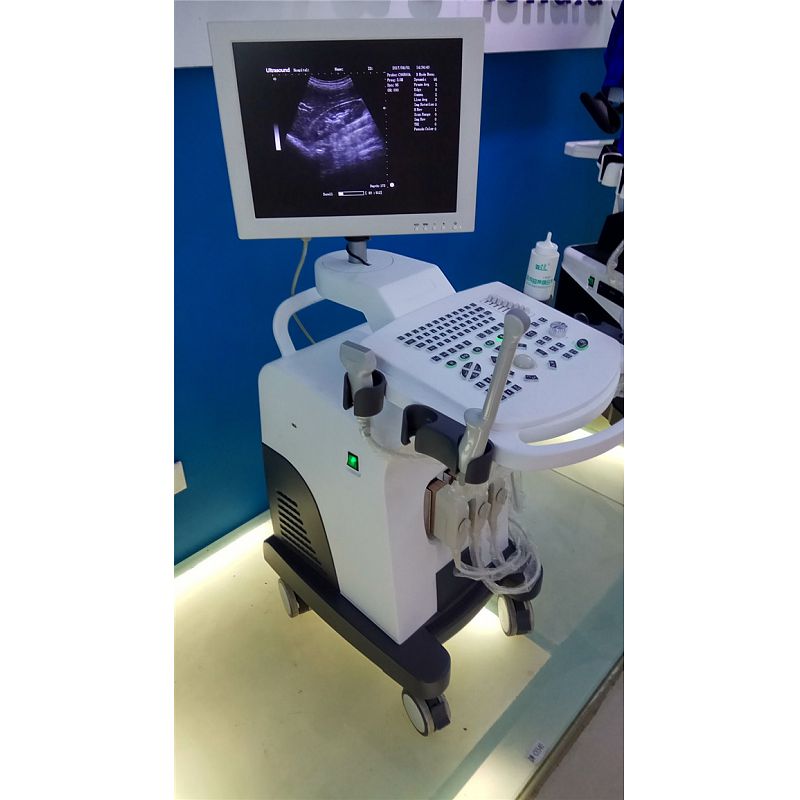

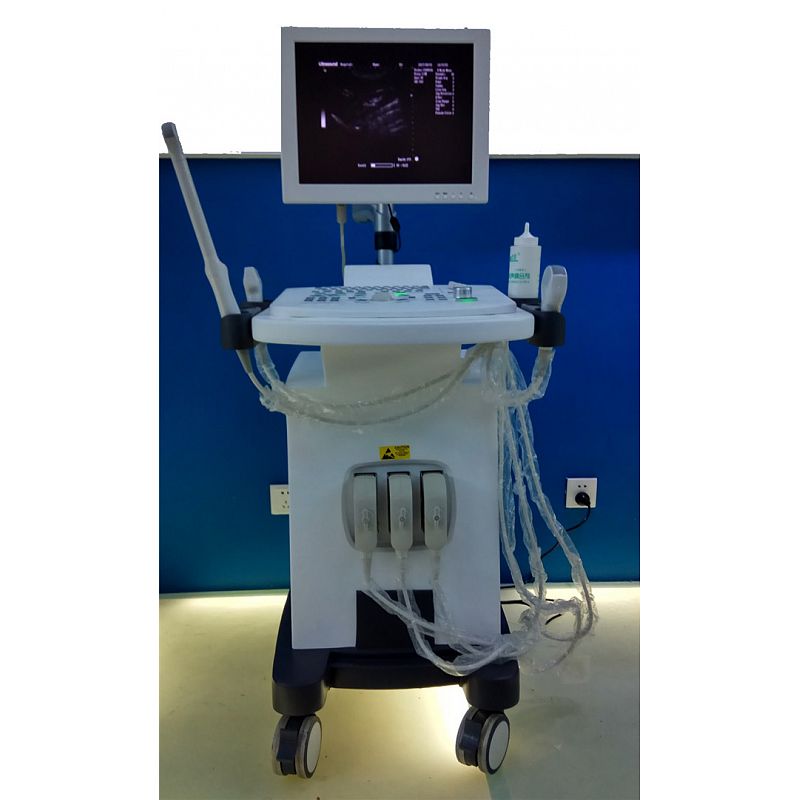

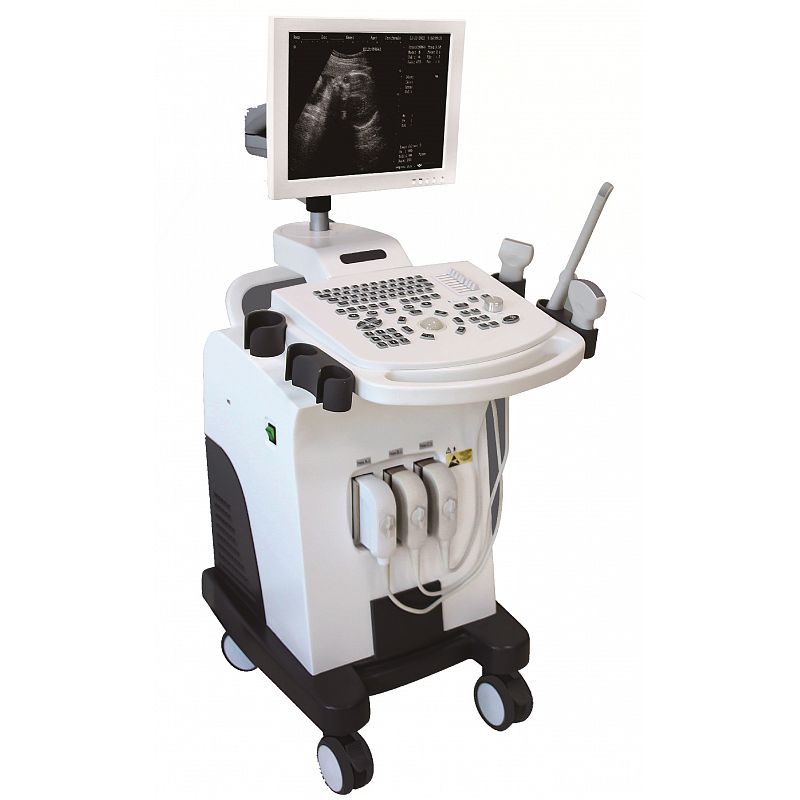

BT-UD370 Full Digital Trolley Ultrasound Scanner


1、

Description of equipment: mainly used in abdomen, Urology, obstetrics and Gynecology, blood vessel, etc.

2、

Functional characteristics

2.1

High definition and multifunctional trolley type full digital ultrasonic diagnostic apparatus

2.2

The image is clear and the operation is convenient

2.3

15 inch LED liquid crystal display

2.4

Powerful image post-processing functions

2.5

The first class digital imaging technology, the image is clearer

2.6

DBF all digital beamforming

2.7

DRF real-time dynamic reception of focus by point by point

2.8

DRA real-time dynamic sound velocity change

2.9

THI tissue harmonic imaging

2.1

RDA real-time dynamic aperture imaging

2.11

DFS numerical control dynamic frequency scanning

2.12

RDF real-time dynamic filtering

2.13

A stable and concise operating system

2.14

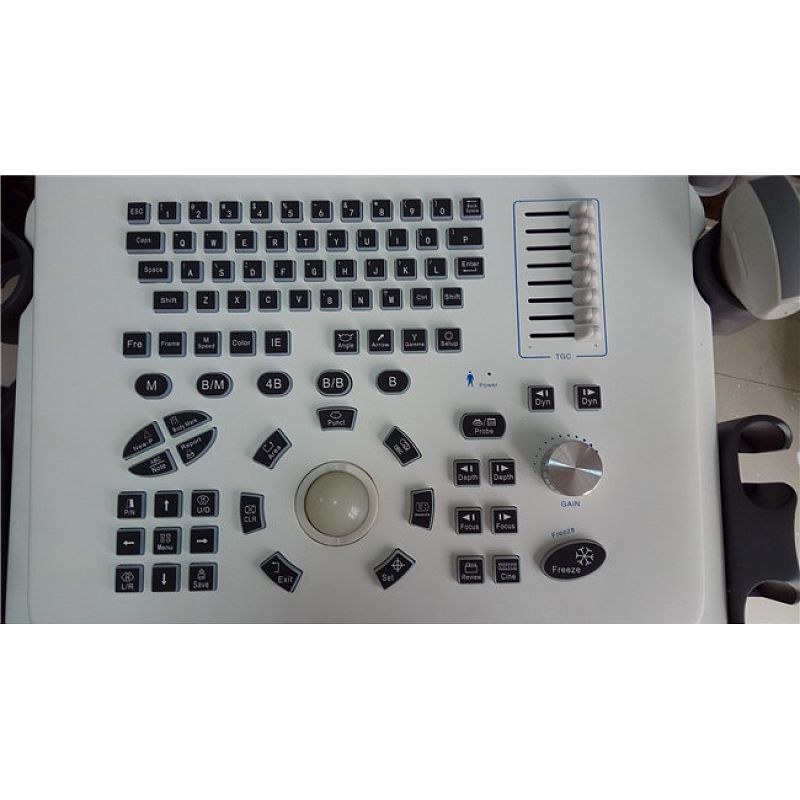

Backlight silicone keyboard, more comfortable and wearable, darkroom use no longer worry

2.15

Intelligent menu, human-computer dialogue is easy and quick

2.16

Shows two puncture guide lines, adjustable angles and positions.

2.17

The multiple rate shows that the diagnosis is more accurate.

2.18

External USB storage, image uploading more convenient

2.19

Large volume movie playback, image automatic circulation demonstration

2.20

Abundant measurement functions: distance, circumference, area, volume, obstetric table, heart software package, etc.

3、

Performance introduction

3.1

Display: 15 inch LED medical display

3.2

Scanning mode: convex matrix / linear array / microconvex

3.3

Probe interface: 3, with automatic identification function to support multiple probes.

3.4

Interface: Chinese / English interface

3.5

Display mode: B, B+B, 4B, B+M, M

3.6

Electron focusing: four segment electron focusing

3.7

Postural markers: 97 species

3.8

3.5MHz: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5.0MHz

5.0MHz: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz

6.5MHz: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz

7.5MHz: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz

3.9

Image mirroring: upper and lower mirrors, left and right mirrors, black and white flip, in any mode can be mirrored conversion, operation

3.10

The image can be rotated at 0 degrees, 90 degrees, 180 degrees, 270 degrees, and 360 degrees.

3.11

Measurements: distance, circumference, area, volume, heart rate, gestational age (BPD, GS, CRL, FL, HC, AC, EDD, AFI) and expected date of birth, fetal weight display and so on.

3.12

The function software package and measurement method can be selected through the track ball cursor.

3.13

Angle measurement, you can intuitively see the angle and length of the angle.

3.14

Have histogram function

3.15

Have depth measurement function

3.16

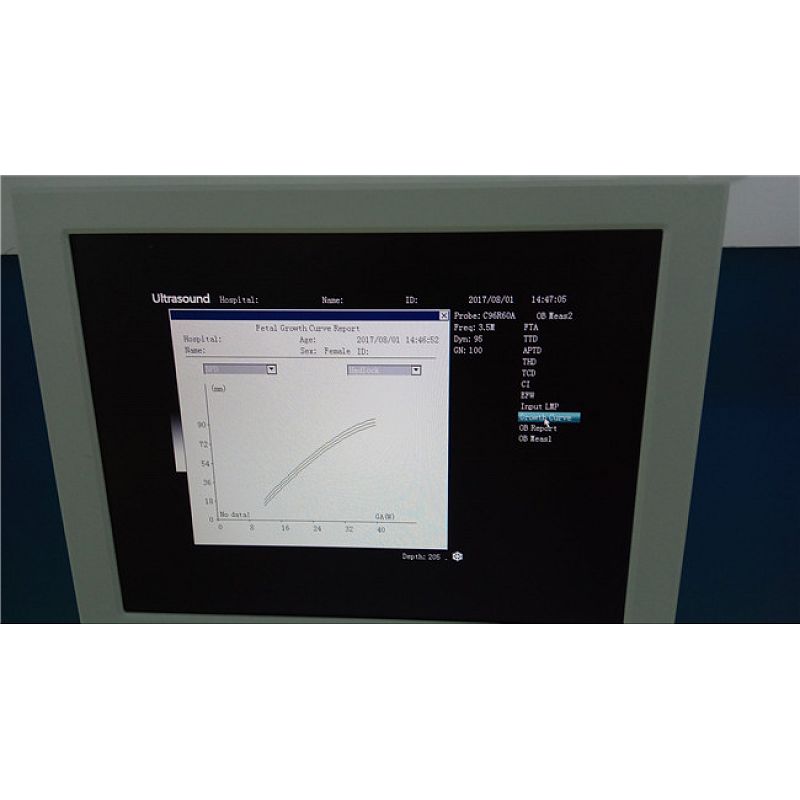

It has 20 obstetric measurement packages and has fetal growth curve function.

3.17

In any imaging mode, the data can be measured in real time

3.18

Automatic memory and generative function of obstetric data

3.19

Character display: date, clock, name, sex, age, doctor, hospital, annotation (full screen character editing) (a mixed editor for letters, numbers, punctuation, and arrows)

3.20

One key out of patient information entry function

3.21

Movie playback: 512 frames, continuous playback or one by one view.

3.22

Permanent storage: built in 8G memory, more than 4000, supporting U disk storage (available for storage).

3.23

Single memory image time is less than 3 seconds

3.24

A key to find saved images, can be found by the date named folder quickly found and a key export.

3.25

Gray scale: 256 level

3.26

With the function of puncture and guidance, the angle and position of the two puncture lines can be adjusted visually.

3.27

Lithotripsy positioning, dynamic target tracking function

3.28

Dynamic range: 0-135dB, step 8, with independent buttons, visually adjustable, adjustable cycle.

3.29

Intelligent TGC control: 8 segments.

3.30

Total gain: 0-100, step 2

3.31

Variable aperture, dynamic trace, dynamic digital filtering, etc.

3.32

2 stage visible tunable harmonics of tissue

3.33

8 kinds of fake color processing, etc.

3.34

The 4 frames are independent keys, visually adjustable, cycle adjustable, and can also be changed through the track ball cursor.

3.35

6 kinds of line correlation, with independent buttons, visually adjustable, circular adjustment, or track ball cursor changes.

3.36

The 8 types of gamma correction are independent keys, visually adjustable, cycle adjustable, and can also be changed through the trackball cursor.

3.37

Edge enhancement 4 level adjustable, with independent buttons, visually adjustable, adjustable cycle, also can be changed through the track ball cursor.

3.38

The scanning range can be adjusted 4 levels, with independent buttons, visually adjustable, circular adjustment, and also can be changed by the track ball cursor.

3.39

Luminance key addition and subtraction enhancement and weakening function

3.40

Caps and Shift locking functions

3.41

Blind area: less than 4

3.42

Maximum display depth:  3.5MHz:126-307mm  6.5MHz:189mm



7.5MHz:40-166mm   5.0MHz:205mm

3.43

Geometric accuracy: transverse less than 5%, longitudinal less than 5%

3.44

Resolution: the side is less than 2mm, and the axis is less than 1mm

3.45

Interface: RS-232 interface, VGA interface, VIDEO interface, USB interface 2, DICOM

3.46

Display rate: 6 display modes; lesion diagnosis is more accurate. In the case of x 1.5 and X 1.8, the display of depth can be raised

3.47

Starting time is less than 7 seconds

3.48

The button has a buzz sound, but open / close

3.49

Formulae of fast data measurement

4、

You can quickly set time, name and other editors through the track ball and keyboard.

5、

Standard: 15 inch LCD; 3.5MHz electronic convex array probe.

6、

Accessories: 7.5MHz high frequency probe; 6.5MHz cavity probe; ultrasonic imaging workstation; portable trolley.

6.1

Other

6.2

Medical device quality management system (ISO13485) certification

6.3

EC authentication

6.4

Equipment inspection report


Optional probes:

Option 1:2-5Mhz convex probe
Option 2:5-8.5MHz Trans-vaginal probe
Option 3:5.5-9MHz Linear probe
Option 4:7.5MHz  rectal Linear Probe
Option 5:4-7Mhz Micro convex probe
Option 6:Veterinary micro convex probe
Option 7:Veterinary Rectal probe
