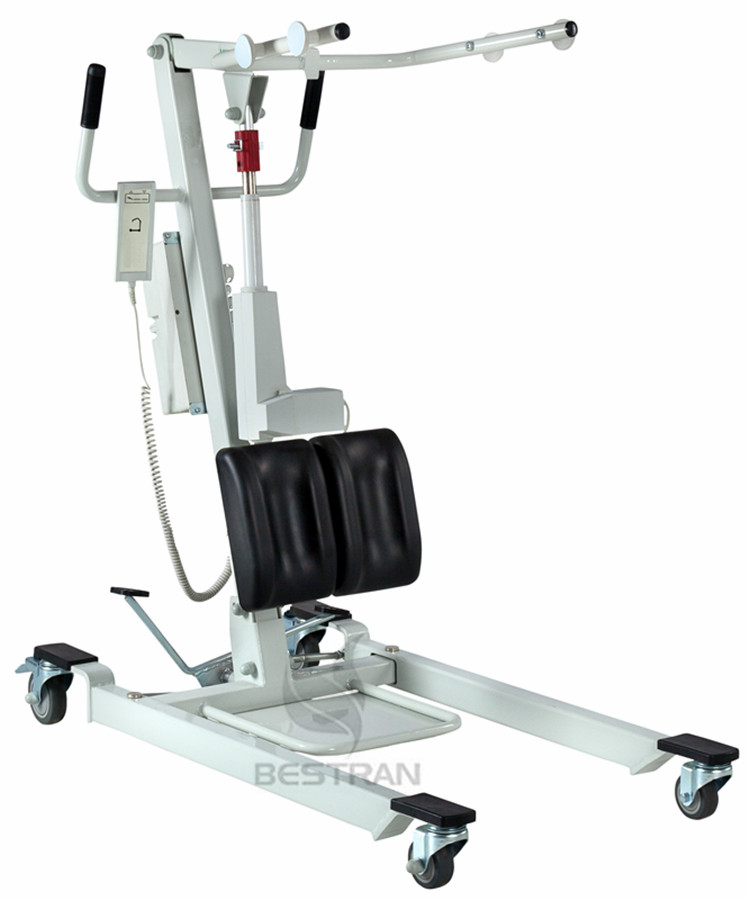

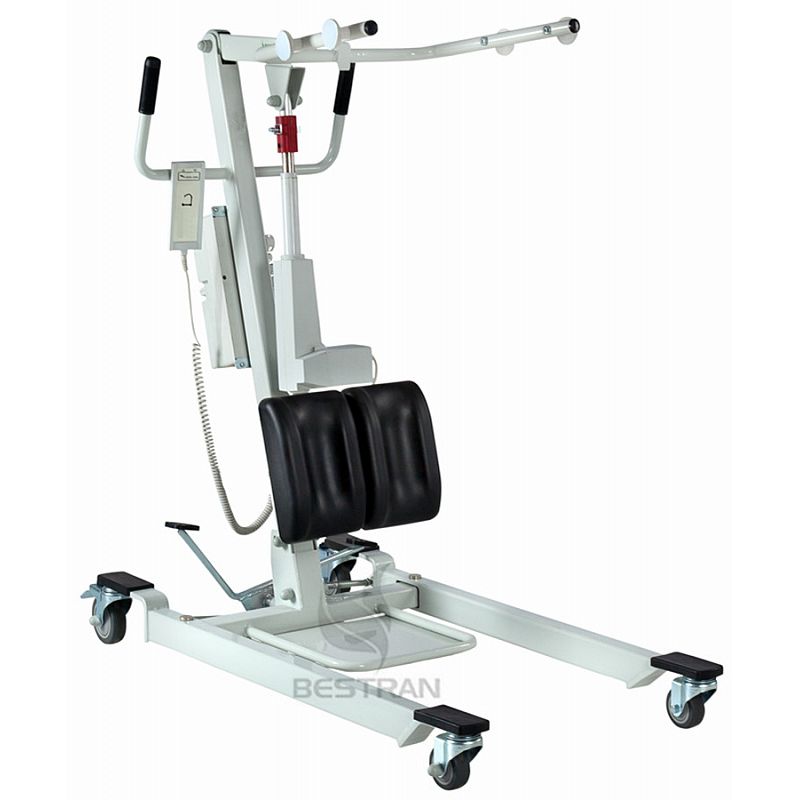

Electric patient lift

Electric patient lift

BT-PL003


Specification

1.Frame Epoxy powder coated mild steel
2.Front Castors 3'' diameter, swivel
3.Rear Castors 4'' diameter, total lock
4.Foot pedal control legs open and close
5.With handset controller for lifting
6.With backup batteries
7.With emergency stop lifting switch;
8.Take emergency descent spin
9.Length: 770 mm
10.Overall Width: 585mm
11.Width after leg open: 800mm
12.Lift Range: 1180-1880 mm
13.Lift Reach:1130mm
14.Leg height:120mm
15.Lift Speed:38 mm/sec
16.Maximum Occupant Weight: 150 kg
17.N.W.:48KG
