Digital Trolley Ultrasonic Diagnosis Equioment

Digital Trolley Ultrasonic Diagnosis Equioment


Model:BT-UD002



Main Features:

Digital Beam Forming Technology

Wide application: abdomen, OB/GYN, urology, cardiology etc

Powerful measurement & calculation software packages

8-Segment TGC adjustment

15inch LCD monitor

Permanent function of image store: 32 images

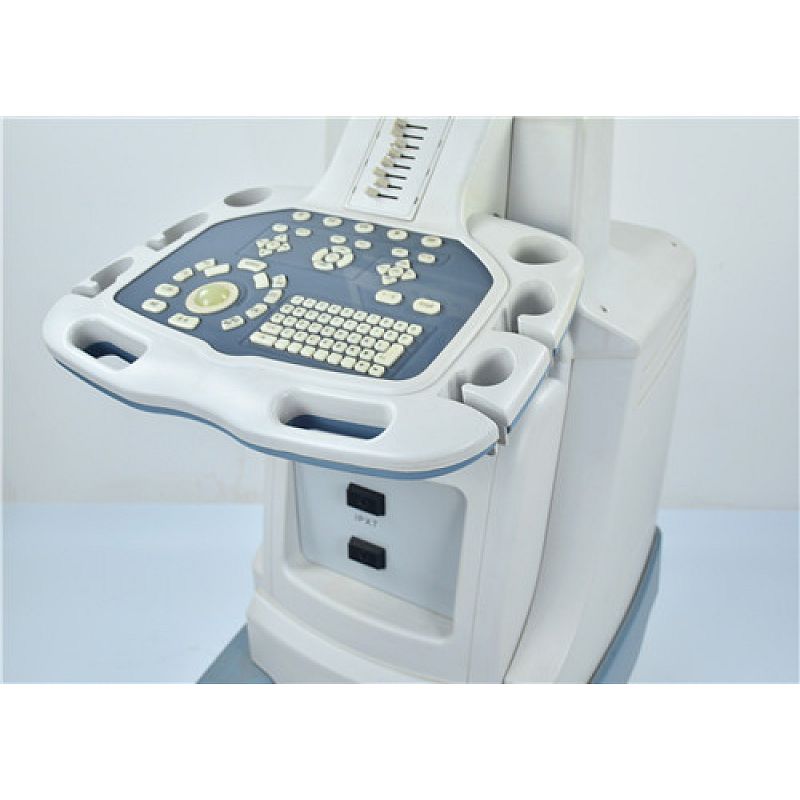

Back-lit keyboard

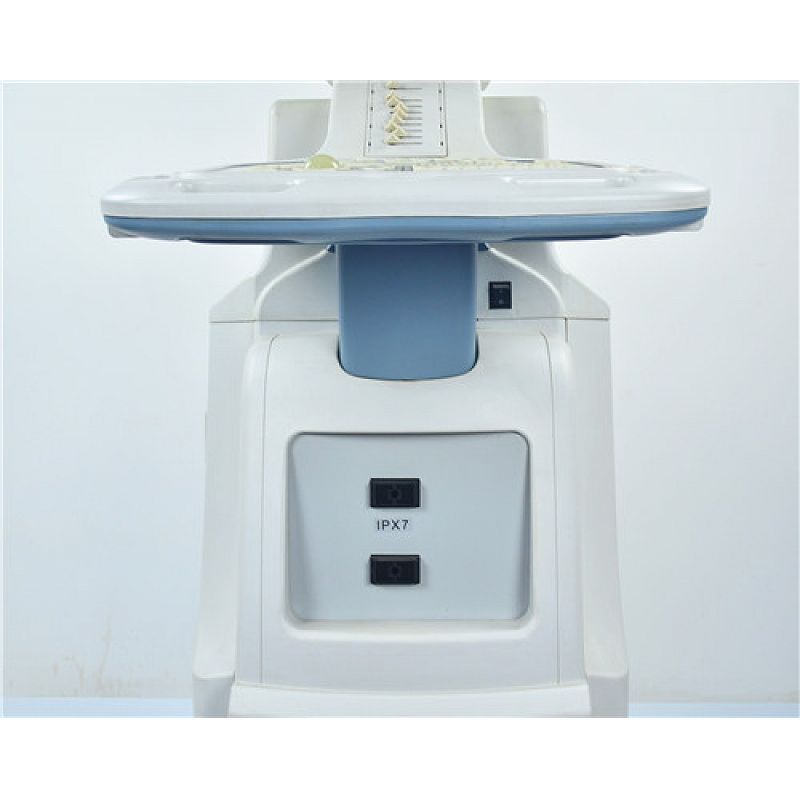

2 probe connectors

Probe automatic identification

OB report can be generated automatically

USB ports for image transfer to PC for remote diagnosis


Main Technical Specification:

Scanning mode: Convex/Linear/Trans-vaginal

Display modes: B, B+B, B+M, M, 4B

Scanning depth: 240mm

Gray scales: 256

Body marks: 18

Image conversion: up/down, left/right, black/white

Function of puncture guide

Per: 4-stage per function

Printer function: can connect laser printer and Video printer directly

Comment: Date, Name, Sex, Age, Hospital, Annotation

Zooming: *0.8, *1.0, *1.2, *1.5, *2.0

Cine Loop Function

Single/ multi-point focusing
Frequency conversion
Angle Change
Frame Correlation
Gamma Correction, edge enhancement for image post-processing
Image Freeze/unfreeze

Port: USB 2.0, VGA, Video connector

USB Function of image store: more than Sixteen thousand images

Power supply: AC 110V-240V, 50HZ/60HZ

Measurement:

General menu: Distance, Area, Volume, Angle, Ellipse

Obstetrics menu: GS, CRL, BPD, HC, AC, FL, Fetus Weight

Heart menu: Distance, Time, Slope, Rhythm


Standard configuration:

Main unit

15inch high resolution monitor

60R/3.5MHZ Convex array probe

USB 2.0, VGA port

Video connector


Options:

L40/7.5MHZ Linear array probe

20R/5.0MHZ Micro-Convex array probe

13R/6.5MHZ Trans-vaginal array probe

Video Printer


Packing information:

Size of Machine by one Carton: 91cm*67cm*117cm, G/W 55.0kgs
