4D Portable color doppler machine

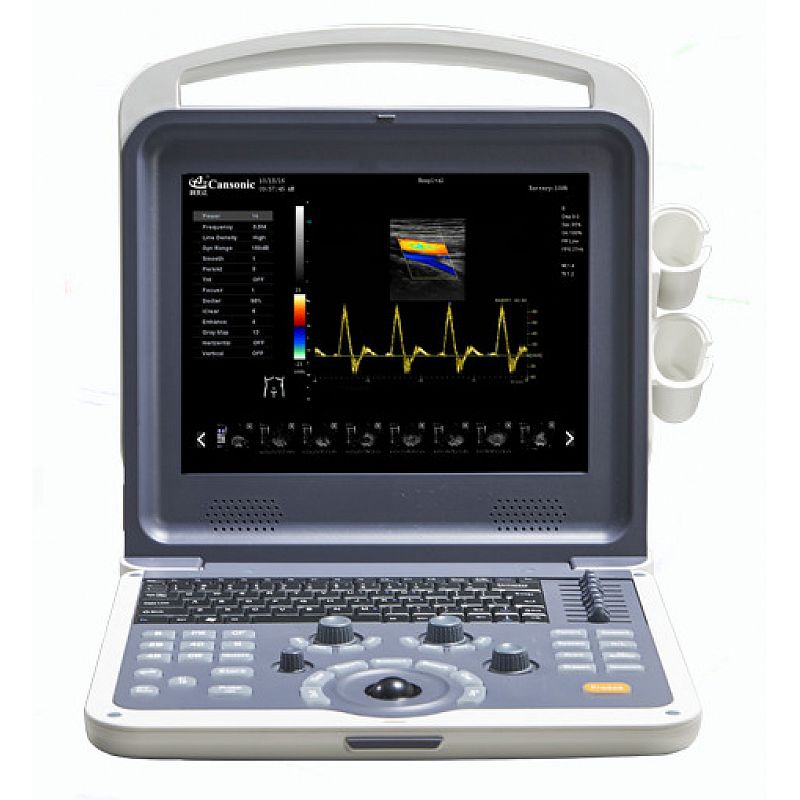

PORTABLE COLOR DOPPLER ULTRASOUND SCANNER

BT-UD12


1. Smart design

12 inch LED medical Monitor, The familiar PC system makes the system intuitive and easy to use. Flexible design allows system to be used conveniently.


2. Probes information

Configuration

Probes

5 Steps Multi-frequency


Standard:

3.5Mhz abdominal probe

2.0, 3.0, 3.5, 4.0, 5.5Mhz

7.5Mhz linear probe

6.0, 6.5, 7.5, 10.0, 12.0Mhz

Options:

6.5Mhz transvaginal probe

5.0, 6.0, 6.5, 7.5, 9.0Mhz

3.5MHz micro-convex probe

2.0, 2.5, 3.5, 4.5, 5.0Mhz

3.5Mhz phased array probe

2.1, 3.0, 3.5, 4.0, 5.5Mhz

4D volume probe

2.0, 3.0, 3.5, 4.0, 5.5Mhz

3. Technical specifications:

Displaying mode

B,B/B,4B,B/M,M, B/C,B/C/D,B/D, duplex, triplex, CFM, PW,CW,4D

Signal processing:

Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields

Image processing:

THI

PSHI TM broadband multi-frequency harmonic image

Power adjustable

Smoothing function

Edge enhancement

One-key optimization

Image conversion

Wall filter adjustable

Base line adjustable

PRF adjustable

AIO-Auto image optimization

IZoom: Instant full screen image

I-Image: intelligent optimization

Storage: Direct date transfere to U disk or PC

Remote: Realtime remote

MBF: Multi Beam Former

SA: Synthetic Aperture Ultrasonic imaging

Iclear: Speckle Noise Reduction

CDF: Contunuous Dynamic Focusing

Continuous Wave Doppler

Trapezoid Image (Option)

Real time 4D imaging (Option)

General measurement

B mode-distance, circumference, area, volume, angle, area Red, Diam Red

M mode- distance, time, velocity, heart rate

Abdomen

measurement

Liver, GB, Aorta, GBWT, CBD, Portal Vein, Spleen

OB packages

EDD table :GS ,BPD, CRL,FL,YS,TAD,LV,OFD,NT,AC,HC, APAD, Cxlength.

Gynecological  packages

Uterine measurement (Uterine diameter, uterine endometrial); left/right ovary measurement; left/right sacculus measurement; Cervix; Uterine depth

Urology packages

Left/right kidney measurement, Volume, Cortex

Small parts Measurement

Left/ right thyroid, volume, Isthnus and calculating report

Cardiac Measurement Package

Heart rate, Valve speed, LV, aortic, mitral, ventricular

Skeletal & Muscles

Skeletal & Muscles, distance, area, Hip angle

Vascular

Senosis D, senosis A, Lt/Rt VVA, Lt/Rt Rulb, Lt/Rt ICA

4D Measurement

Early Obstetric: Lt Ovary, Rt Ovary, Uterus

Later Obstetric: Fetal Biometry, Long Bones, AFI

Scanning depth

300mm

Probe elements

128

Body mark

Abdominal ,Cardiology, Gynecology, Obstetrics, Small parts

Cine loop

Automatically & manually

Image storage format

BMP, JPEG, PNG

Input/output ports

VGA, HSUSB, Dicom, DVI, COM

Standard Configuration

Main unit, 12 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe, 2 probe connectors, User’s Manual, hard disk (SSD)built-in li-ion battery

Options

6.5Mhz transvaginal probe, 3.5Mhz micro-convex probe, 3.5Mhz phased array probe, 4D volume probe, trolley, USB laser printer and Video printer, biopsy kitaluminum case
