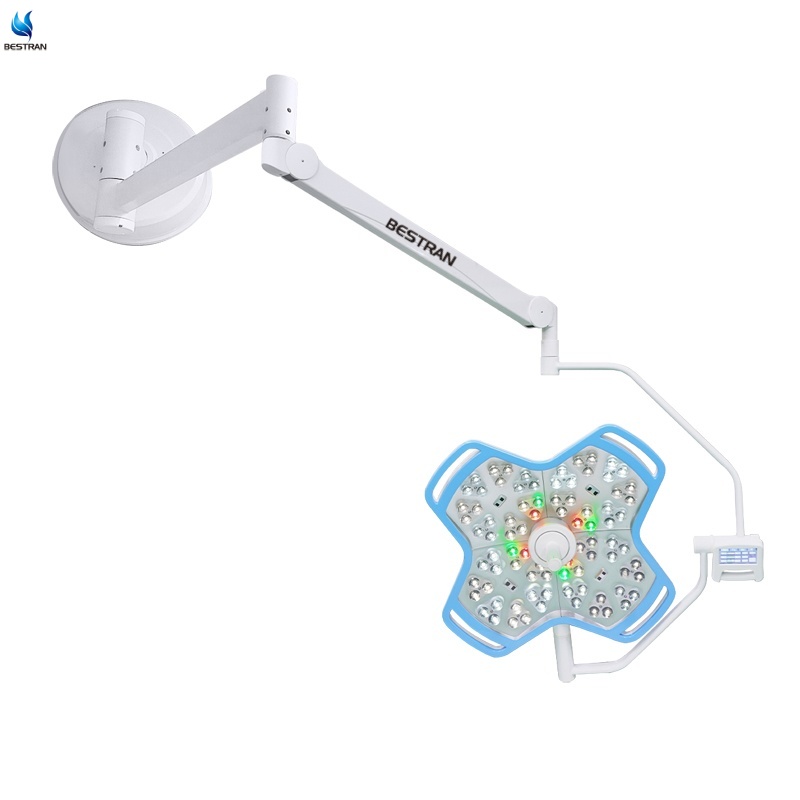

Wall Mounted LED Surgical Light | LED Operating Lamp Manufacturer | BESTRAN

Model:BT-LED360W

Product Overview

The BESTRAN BT-LED360W Wall Mounted LED Surgical Light is a high-performance operating light designed for operating rooms, emergency departments, outpatient surgery centers and treatment rooms where ceiling installation is not practical.

Equipped with 84 high-efficiency LED bulbs, a triple-lens optical system, electronic focusing, and intelligent shadow compensation, the BT-LED360W delivers bright, uniform illumination of up to 160,000 Lux while maintaining excellent color accuracy and deep cavity lighting.

Its ultra-thin windmill-shaped lamp head supports laminar airflow according to DIN 1946-4, helping maintain a clean surgical environment. The wall-mounted design saves ceiling space while providing maximum flexibility through a 360° spring arm.

Key Features

High-Intensity LED Illumination

l Illuminance up to 160,000 Lux

l Uniform and shadow-free surgical lighting

l Excellent deep cavity illumination

l Suitable for minor and major surgical procedures

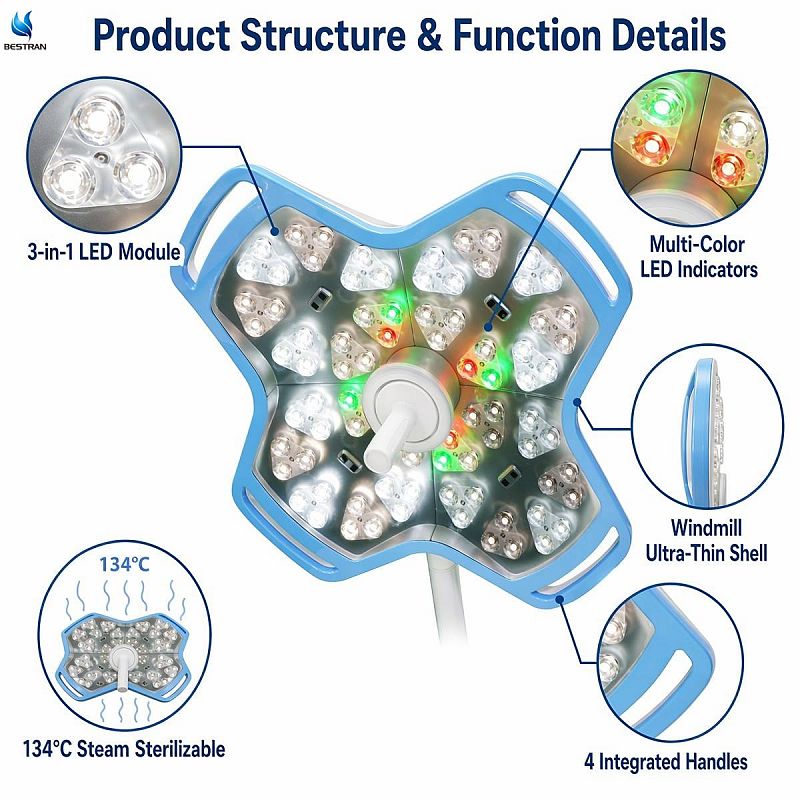

Triple-Lens Optical Technology

l 84 high-performance LEDs

l 28 triple-lens optical modules

l Four independent LED light source groups

l Consistent illumination across the surgical field

Electronic Focusing

l Five-level electronic spot adjustment

l Controlled via LCD panel or sterilizable handle

l Quick adaptation for different procedures

Intelligent Shadow Compensation

l Automatically detects light obstruction

l Maintains constant illumination

l Reduces manual repositioning during surgery

Laminar Flow Compatible Design

l Ultra-thin windmill-shaped lamp head

l Optimized airflow performance

l Supports DIN 1946-4 laminar flow operating rooms

Flexible Wall-Mounted Spring Arm

l 360° rotation

l Smooth and precise positioning

l Lightweight, durable spring arm

l Ideal for rooms with limited ceiling space

LCD Touchscreen Control

l LCD display with intuitive controls

l Brightness adjustment

l Color temperature adjustment

l Electronic focus control

l Power on/off control

Sterilizable Handle

l Central removable handle

l Steam sterilizable at 134°C

l Easy cleaning and infection control

Long LED Lifespan

l LED service life up to 100,000 hours

l Low maintenance

l Reduced operating costs

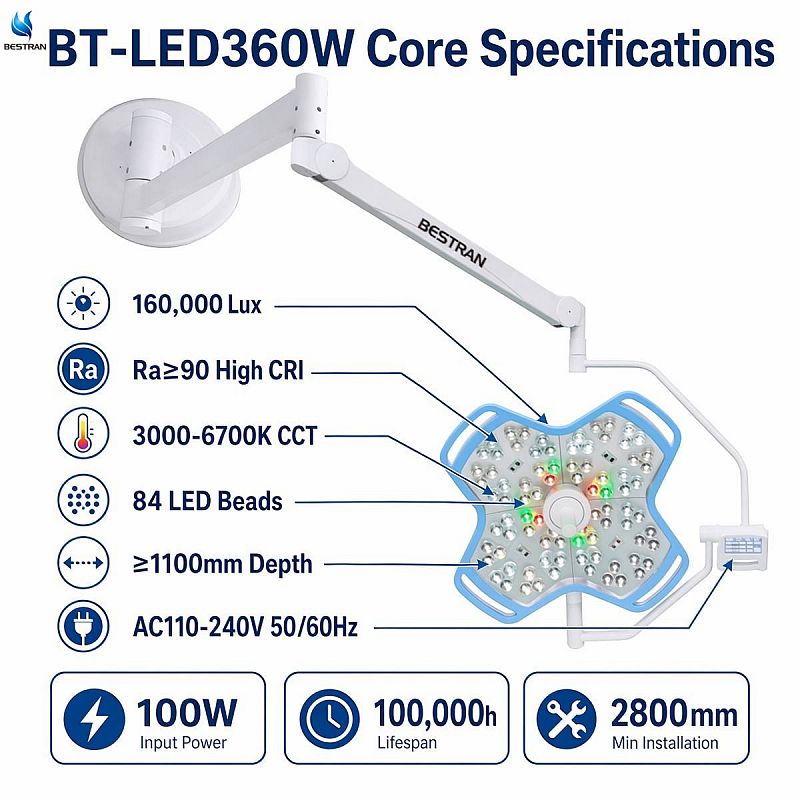

Technical Specifications

Product Benefits

Excellent Surgical Visibility

High-intensity LED illumination with deep light penetration provides clear visibility for various surgical and examination procedures.

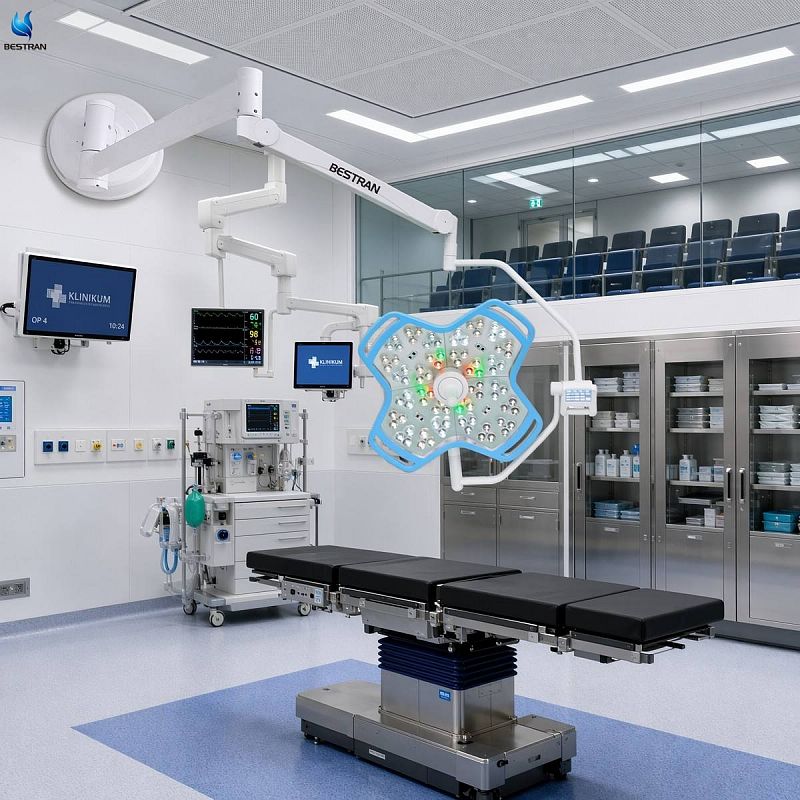

Space-Saving Installation

The wall-mounted configuration is ideal for treatment rooms, outpatient clinics and operating rooms where ceiling installation is not feasible.

Improved Infection Control

The aerodynamic lamp head supports laminar airflow and minimizes air disturbance, helping maintain a cleaner surgical environment.

Enhanced Surgical Efficiency

Electronic focusing and automatic shadow compensation reduce interruptions and allow medical staff to concentrate on patient care.

Long-Term Reliability

With a 100,000-hour LED lifespan and corrosion-resistant ABS housing, the BT-LED360W offers dependable performance with minimal maintenance.

Applications

Suitable for:

l General Surgery

l Minor Surgery

l Outpatient Surgery

l Emergency Procedures

l Trauma Treatment

l Plastic Surgery

l ENT Procedures

l Gynecological Procedures

l Examination Rooms

l Intensive Care Units (ICU)

Departments

Recommended for:

Hospital Departments

l Operating Room (OR)

l Emergency Department

l Outpatient Department

l Minor Procedure Room

l ICU

l Trauma Center

l General Surgery

l Orthopedics

l ENT Department

l Obstetrics & Gynecology

Healthcare Facilities

l General Hospitals

l Private Hospitals

l Ambulatory Surgery Centers (ASC)

l Specialty Clinics

l Community Health Centers

l Veterinary Hospitals (Optional)

Available Options

Optional Configurations

· HD Camera System

· 4K Camera Module

· Wireless Wall Control

· Battery Backup System

· Medical Monitor Arm

· Additional Control Panel

OEM Customization

BESTRAN provides:

· Customer logo printing

· Private labeling

· Customized packaging

· User manual customization

· Product color customization (upon request)

Why Choose BESTRAN

Professional Operating Room Equipment Manufacturer

BESTRAN specializes in surgical lights, operating tables and medical furniture with over 20 years of manufacturing experience.

Advanced Optical Technology

Our LED surgical lights combine triple-lens optics, intelligent shadow compensation and electronic focusing to deliver reliable illumination for demanding clinical environments.

OEM & ODM Services

We provide flexible customization, including branding, packaging, accessories and technical configurations to support distributors and healthcare projects.

Strict Quality Control

Each surgical light is tested for:

l Illuminance accuracy

l Color temperature consistency

l Electronic control reliability

l Mechanical stability

l Safety performance

l Durability

Global Export Experience

BESTRAN products are exported to hospitals, distributors and healthcare projects in more than 100 countries.

FAQ

Q1. What is the maximum illuminance of the BT-LED360W?

The lamp provides adjustable illumination from 40,000 Lux to 160,000 Lux.

Q2. Does it support electronic focusing?

Yes. It features a 5-level electronic focusing system, which can be operated using the LCD control panel or the sterilizable handle.

Q3. Is it suitable for laminar flow operating rooms?

Yes. The ultra-thin lamp head is designed to comply with DIN 1946-4 laminar airflow standards.

Q4. Why choose a wall-mounted surgical light?

Wall-mounted surgical lights are ideal for operating rooms and treatment areas with limited ceiling space while still providing excellent flexibility and illumination.

Q5. Can the product be customized?

Yes. BESTRAN offers OEM services including customer logo printing, private labeling, customized packaging and optional accessories.

Q6. What is the LED lifespan?

The high-performance LEDs are rated for up to 100,000 hours, significantly reducing maintenance and replacement costs.

Related Products

l Ceiling Mounted Double Dome LED Surgical Light

l Ceiling Mounted Single Dome LED Surgical Light

l Mobile LED Surgical Light

l LED Examination Light

l Electric Operating Table

l Hydraulic Operating Table

l Medical Pendant System

l Operating Room Equipment

Call to Action

Upgrade Your Surgical Lighting with BESTRAN

The BESTRAN BT-LED360W Wall Mounted LED Surgical Light combines 160,000 Lux illumination, electronic focusing, intelligent shadow compensation and a space-saving wall-mounted design to meet the needs of modern operating rooms and treatment areas.

Whether you are outfitting a new healthcare facility or upgrading an existing surgical suite, BESTRAN offers factory-direct manufacturing, OEM/ODM customization, international certifications and professional export support.

Contact us today to request a quotation, technical specifications, or a customized operating room lighting solution tailored to your project.

Engineered for Space-Efficient Surgical Lighting：

l Wall-mounted installation maximizes floor and ceiling space while maintaining full 360° positioning flexibility.

l 84 high-performance LEDs and triple-lens optics deliver uniform, high-intensity illumination with excellent depth.

l Electronic focusing and intelligent shadow compensation ensure consistent lighting throughout surgical procedures.

l Ultra-thin laminar flow lamp head helps preserve clean-air circulation in operating rooms compliant with DIN 1946-4.

l LCD touchscreen controls and sterilizable handle improve workflow efficiency and support modern infection control practices.
