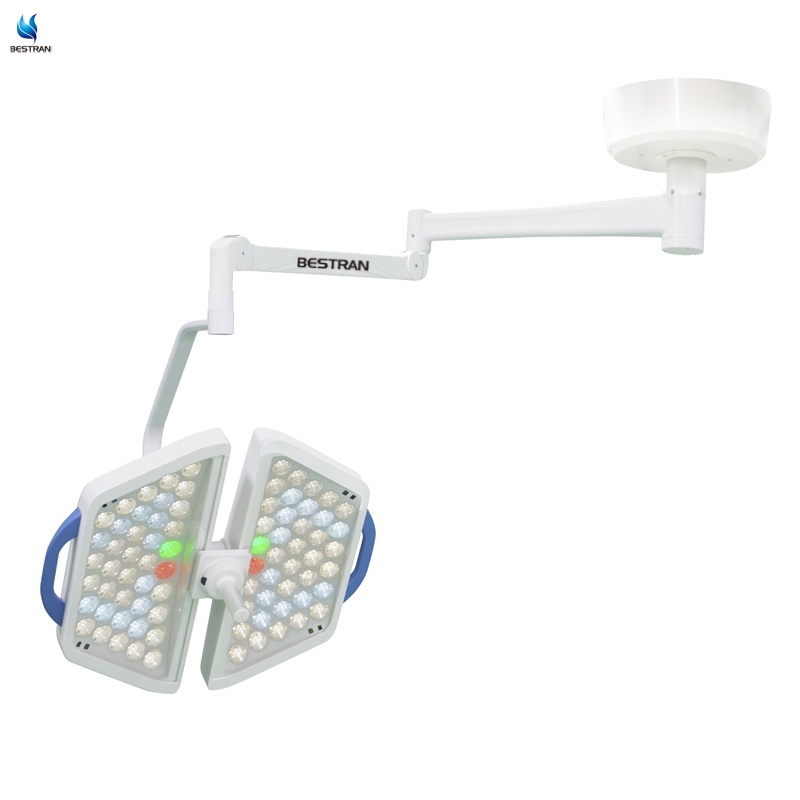

Single Dome Ceiling LED Surgical Light with Touch Screen, Electronic Focusing and RGB Color Compensation

Model:BT-LED320

Product Overview

The BESTRAN BT-LED320 Single Dome Ceiling LED Surgical Light is a premium surgical lighting solution designed for operating rooms, emergency departments, treatment rooms and outpatient surgical centers.

Equipped with 80 high-performance LED light sources, diamond-surface optical lenses, electronic focusing, RGB color compensation, and intelligent shadow compensation, it provides up to 160,000 Lux of uniform illumination with excellent color rendering and deep cavity lighting.

Its ultra-thin aerodynamic lamp head supports laminar airflow according to DIN 1946-4, while the integrated LCD touch panel enables intuitive adjustment of brightness, color temperature and beam size for a wide range of surgical procedures.

Key Features

High-Intensity Surgical Illumination

l Maximum illuminance up to 160,000 Lux

l Uniform and shadow-free lighting

l Illumination depth ≥1100 mm

l Excellent visibility for precision surgery

Diamond-Surface Optical Lens Technology

l Individual optical lens for every LED

l High light transmission efficiency

l Reduced glare

l Uniform light distribution

l Improved visual comfort

RGB Full-Spectrum Color Compensation

l Enhanced R9 red spectrum improves blood vessel and tissue visualization.

l Enhanced R11 green spectrum provides balanced full-spectrum illumination.

l Supports more accurate tissue identification during surgery.

Electronic Focusing

l Five-level electronic beam adjustment

l Easy spot size control through the LCD touch panel

l Suitable for different surgical depths and working distances

Intelligent Shadow Compensation

l Automatically compensates for temporary light blockage caused by surgeons or equipment

l Maintains stable illumination throughout the procedure

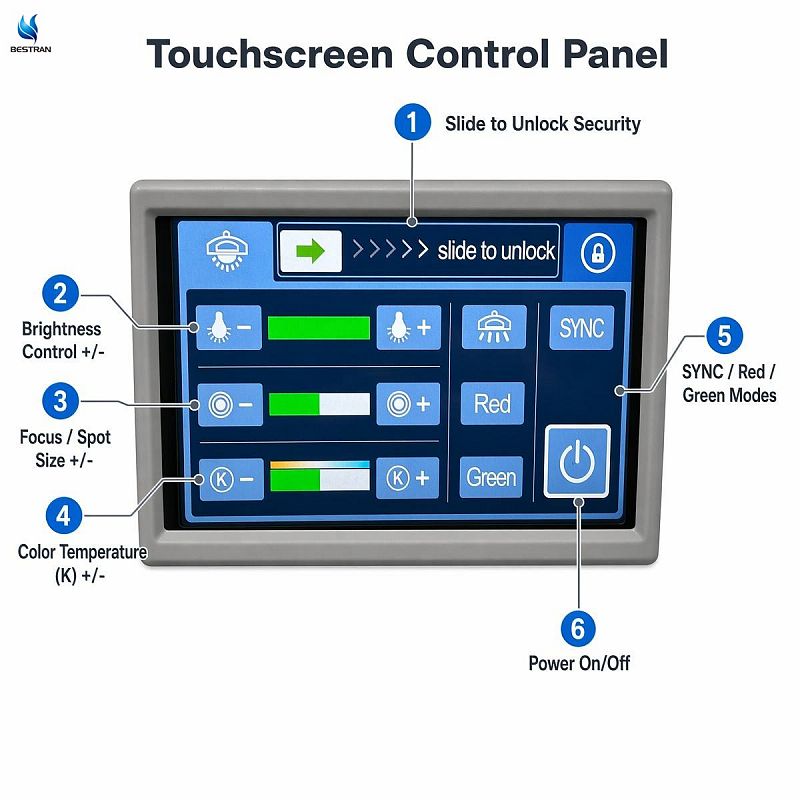

LCD Touch Screen Control

l User-friendly LCD interface

l Brightness adjustment

l Color temperature adjustment

l Beam size control

l Power on/off control

Ultra-Thin Laminar Flow Lamp Head

l Hollow aerodynamic design

l Compatible with DIN 1946-4 laminar airflow operating rooms

l Helps reduce airflow disturbance and supports infection control

Flexible Spring Arm System

l 360° rotation

l Smooth positioning

l Lightweight yet durable suspension arm

l Easy adjustment during surgery

Sterilizable Handle

l Removable central handle

l Autoclavable at 134°C

l Supports hospital infection control standards

Long-Life LED Technology

l LED service life up to 100,000 hours

l Low maintenance requirements

l Energy-efficient performance

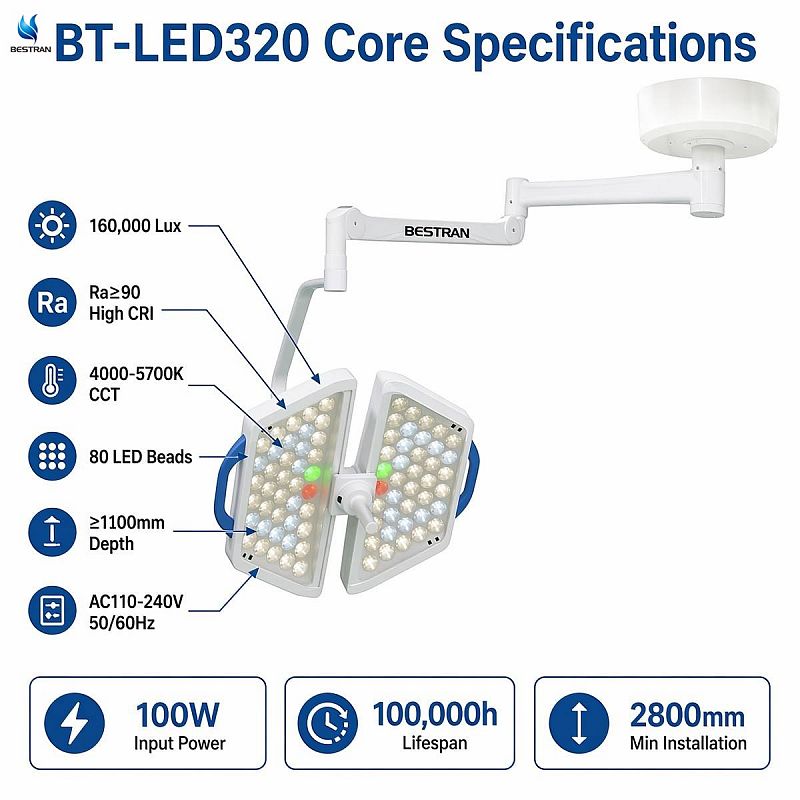

Technical Specifications

Product Benefits

Exceptional Surgical Visibility

High illuminance, accurate color rendering and deep illumination provide a clear surgical field for a wide range of procedures.

Enhanced Tissue Recognition

RGB color compensation improves differentiation of blood vessels, soft tissues and anatomical structures.

Improved Operating Efficiency

Electronic focusing and intelligent shadow compensation reduce manual adjustments and allow surgeons to remain focused on the procedure.

Better Infection Control

The ultra-thin hollow lamp head supports laminar airflow systems, helping maintain a cleaner operating room environment.

Reliable Long-Term Performance

With a 100,000-hour LED lifespan, corrosion-resistant ABS housing and robust spring arm, the BT-LED320 delivers dependable performance with minimal maintenance.

Applications

Ideal for:

l General Surgery

l Orthopedic Surgery

l Plastic Surgery

l ENT Surgery

l Urology

l Gynecology

l Emergency Procedures

l Trauma Care

l Outpatient Surgery

l Minor Surgery

Departments

Suitable for:

Hospital Departments

l Operating Room (OR)

l Emergency Department

l General Surgery

l Orthopedics

l ENT Department

l Obstetrics & Gynecology

l Urology

l Plastic Surgery

l Procedure Room

Healthcare Facilities

l General Hospitals

l Private Hospitals

l Ambulatory Surgery Centers (ASC)

l Community Hospitals

l Specialty Clinics

Available Options

Optional Accessories

l HD Camera Module

l Wireless Wall Controller

l Battery Backup System

l Additional Sterilizable Handles

l Ceiling Extension Arm

l Different Suspension Arm Lengths

OEM Customization

BESTRAN offers:

l Customer logo printing

l Private label branding

l Customized packaging

l User manual customization

l Multi-language labels

l Voltage customization

Why Choose BESTRAN

Advanced Surgical Lighting Technology

The BT-LED320 integrates diamond optical lenses, electronic focusing, RGB color compensation and intelligent shadow compensation to deliver consistent, high-quality surgical illumination.

Professional Manufacturing

With over 20 years of experience in medical equipment production, BESTRAN provides reliable operating room solutions to hospitals and distributors worldwide.

Strict Quality Assurance

Every surgical light is tested for illuminance, color consistency, electrical safety, mechanical stability and durability before shipment.

OEM & ODM Capability

Flexible customization services include branding, packaging, technical configurations and accessories to meet the needs of different markets.

Global Export Experience

BESTRAN products are exported to more than 100 countries, supported by professional documentation, technical assistance and responsive after-sales service.

FAQ

Q1. What is the maximum illuminance?

The BT-LED320 provides up to 160,000 Lux.

Q2. What is the benefit of RGB color compensation?

It enhances red and green spectrum performance, improving visualization of blood vessels and tissue structures for greater surgical accuracy.

Q3. Does the lamp support electronic focusing?

Yes. The light spot can be adjusted electronically through the LCD touch panel.

Q4. Is it suitable for laminar flow operating rooms?

Yes. The ultra-thin hollow lamp head is designed to comply with DIN 1946-4 laminar airflow requirements.

Q5. Can the handle be sterilized?

Yes. The removable center handle can be steam sterilized at 134°C.

Q6. Is OEM customization available?

Yes. BESTRAN provides OEM services including logo printing, private labeling, packaging customization and optional accessories.

Related Products

l Double Dome Ceiling LED Surgical Light (BT-LED320320)

l Ceiling LED Surgical Light with Camera & Monitor (BT-LED320320-TV)

l Wall Mounted LED Surgical Light (BT-LED360W)

l Mobile LED Surgical Light (BT-LED360S)

l Electric Operating Table

l Surgical Pendant System

l LED Examination Light

l Operating Room Equipment

Call to Action

Illuminate Every Procedure with Precision

The BESTRAN BT-LED320 Single Dome Ceiling LED Surgical Light combines 160,000 Lux illumination, diamond optical lens technology, RGB color compensation, electronic focusing and intelligent shadow compensation to deliver reliable, high-quality lighting for modern surgical environments.

Whether you are equipping a new operating room or upgrading an existing facility, BESTRAN offers factory-direct manufacturing, OEM/ODM customization, international project support and dependable after-sales service.

Contact us today to request a quotation, download the product catalog or discuss a customized surgical lighting solution for your healthcare project.

Designed for Modern Surgical Precision

· 80 high-efficiency LEDs with individual optical lenses provide bright, uniform illumination with minimal glare.

· Diamond-surface lens technology improves light transmission efficiency and enhances visual comfort.

· RGB color compensation delivers more natural tissue color reproduction, supporting accurate surgical judgment.

· Electronic focusing and intelligent shadow compensation maintain consistent illumination without interrupting the surgical workflow.

· Ultra-thin laminar flow design helps preserve clean-air circulation in modern operating rooms while supporting infection control standards.
