BT-LED700500G-TV LED Surgical Lamp with Camera and 22” Display System

BT-LED700500G-TV LED Surgical Lamp | Operating Light with Camera & Monitor System

BT-LED700500G-TV dual-head LED surgical shadowless lamp equipped with built-in Hikvision camera and 22-inch 1080P display system. Adjustable 40000–160000 Lux illumination, 3000K–6700K color temperature, 100000h long lifespan, low heat, laminar flow design for modern hospital operating rooms.

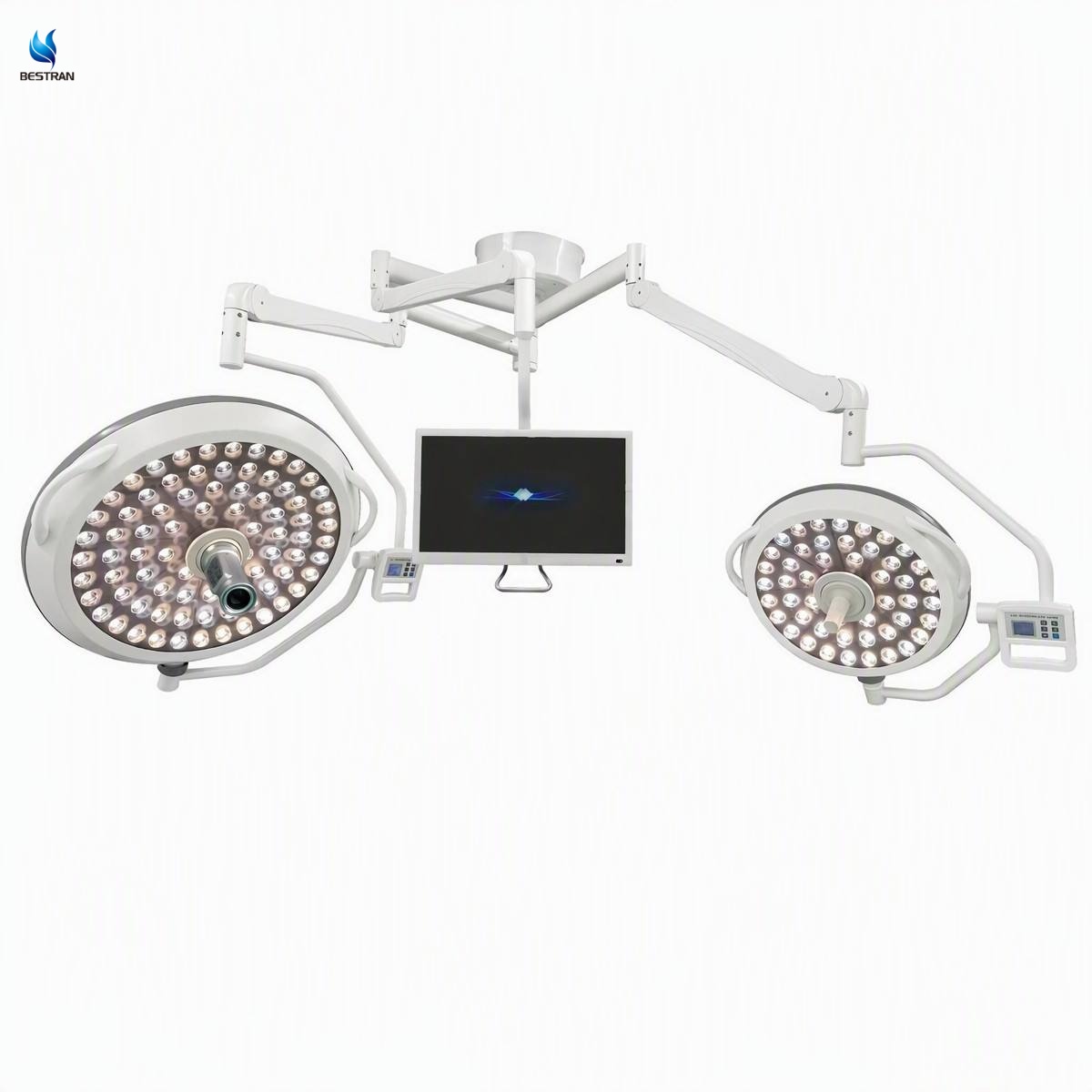

BT-LED700500G-TV Dual-Head LED Surgical Lamp with Integrated Camera & 22” HD Display System

Product Overview

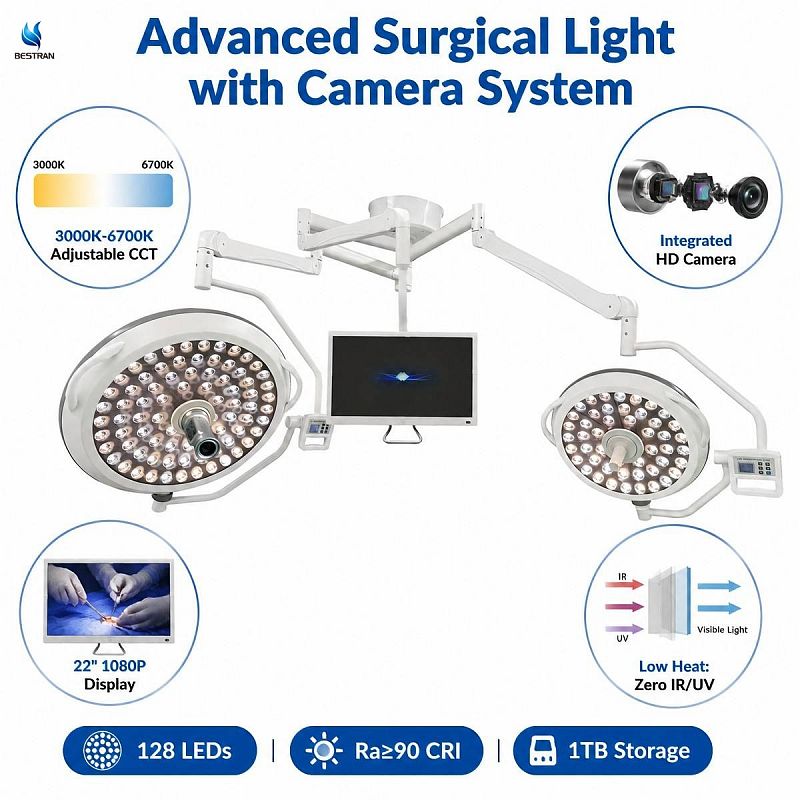

BT-LED700500G-TV is a high-end dual-head LED surgical shadowless lamp integrated with professional medical camera system and 22-inch local HD display. Combining high-standard surgical lighting and real-time video recording, display and storage functions, this all-in-one operating lamp meets modern digital operating room demands for lighting, video teaching, surgical recording, remote consultation and clinical archive management. With ultra-long LED lifespan, adjustable full-spectrum lighting, ultra-low ultraviolet radiation and modular anti-failure design, it delivers stable, safe and high-definition surgical lighting and video acquisition for various complex operations.

Main Technical Parameters

Integrated Medical Camera System

Adopts independently developed Hikvision image processing algorithm, specially optimized for high-brightness shadowless lamp surgical environments. It supports fast auto-focus, strong light suppression and anti-flicker processing, restoring realistic colors and rich details even under 180,000 Lux high illumination. Built-in ND filter and multi-scene modes ensure stable and clear surgical video capture under complex operating lighting conditions.

Stable & Low-Latency Performance
Designed strictly according to medical electrical safety standards with stable material and circuit performance. Fast startup within 10 seconds and ultra-low video latency below 100ms, ensuring real-time synchronous surgical imaging.

Rich Industrial Interfaces & Remote Control
Equipped with SDI high-definition interface, optional UART/RS485 communication ports. Supports VISA, Pelco P/D protocols, realizing PTZ and parameter control via PC or operating room central controller.

Ultra-Compact Embedded Design
Miniature camera movement: 60mm outer diameter, only 190g weight. Lightweight embedded structure perfectly adapts to internal installation of surgical lamp without blocking light field or laminar flow.

22-inch 1080P HD Video Display System

Comes with a built-in 22-inch 1080P LCD monitor, supporting local video preview, IPC decoding and multi-channel network video access. It realizes all-in-one functions of real-time display, recording, storage and playback for digital operating rooms.

• Support 3G-SDI high-definition video input

• 4-channel 1080P network video preview & storage

• AAC audio encoding, 1-in 1-out audio system with built-in stereo speakers

• Extended output via HDMI & VGA interface

• Local storage support: built-in 1TB hard drive, USB flash drive, portable hard disk

• H.265 high-efficiency video compression, greatly saving storage space

• Smart UI with automatic IPC scanning and adding function

• Infrared remote control + physical button dual control

• USB 3.0 high-speed video recording and file copying

• RS485 communication, support PELCO-P/PELCO-D PTZ control

• Video retrieval, loop recording and file keyword search

Product Features & Advantages

1. Full-Spectrum Adjustable Color Temperature for Accurate Tissue Recognition
Equipped with multi-band LED beads, the lamp head achieves 3000K–6700K wide-range color temperature adjustment while maintaining Ra≥90 high color rendering. It accurately restores the true color of human tissues, blood vessels and organs, improving surgical accuracy and clinical judgment efficiency.

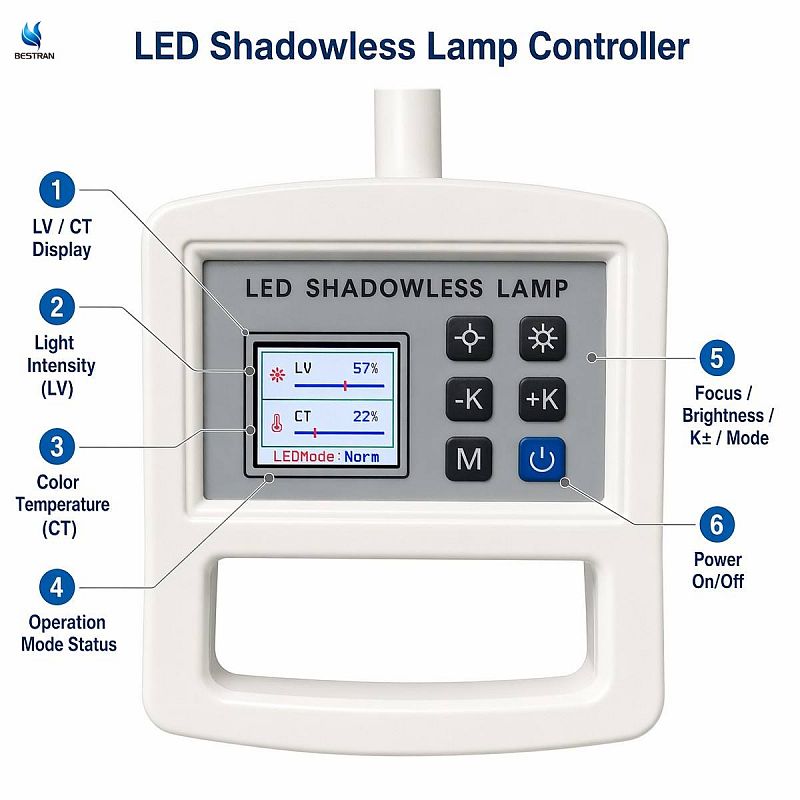

2. Dual-Head Stepless Dimming, Super Bright & Uniform Shadowless Lighting
Optimized high-performance optical lens focuses light evenly on the surgical field. Dual independent lamp heads support separate stepless brightness adjustment. Max illumination reaches 160,000 Lux, meeting the lighting requirements of large open surgery and fine minimally invasive surgery.

3. Modular Independent Control, Ultra-Low Failure Rate
Each LED module contains 6–10 beads with independent electronic control system. Single bead damage will not affect the overall lamp operation. The whole lamp features extremely low failure rate and stable long-term continuous operation.

4. Flexible Manual Focusing for Multi-Scenario Surgery
Precision manual focus system supports flexible spot size switching. It adapts to large-spot high-illumination open operations and small-spot high-precision window surgery & minimally invasive procedures.

5. Zero Infrared & Ultra-Low UV Radiation, Low Heat Output
The LED light source produces almost no infrared thermal radiation and extremely low ultraviolet radiation. It effectively reduces wound heat stimulation and avoids tissue dryness, protecting patients and surgical staff.

6. 100,000 Hours Ultra-Long Service Life
Far longer than traditional halogen lamps (600–5000 hours). The long-life LED design greatly reduces lamp replacement frequency and hospital maintenance costs.

7. High Energy-Saving Structure with Optimized 3D Layout
Adopts 3D spatial simulation layout for 1W high-efficiency beads. It achieves professional medical lighting performance with minimal bead arrangement, realizing energy-saving and high-efficiency operation.

8. Laminar Flow Compatible Streamlined Design
The overall streamline structure conforms to operating room laminar flow turbulence standards. It ensures smooth air purification circulation, avoids dust accumulation, stabilizes lamp working temperature and extends LED service life.

9. Premium Spring Arm, 360° Flexible Positioning
High-strength durable spring balance arm supports 360° free rotation, arbitrary angle adjustment and precise positioning. Wide movement range adapts to operating rooms with different ceiling heights and architectural structures.

10. 135°C High-Temperature Sterilizable Handle
Detachable surgical handle jacket supports high-pressure high-temperature sterilization up to 135°C. It allows sterile adjustment of lamp focus, position and angle during surgery, fully meeting medical sterile standards.

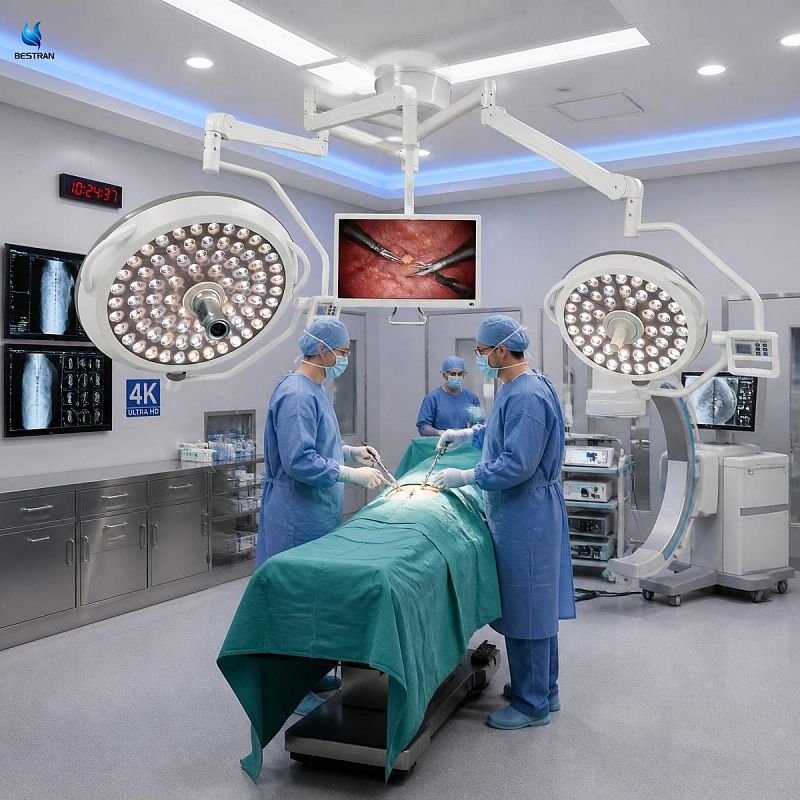

Application Scenarios

Ideal for digital operating rooms, general surgery, orthopedics, gynecology and obstetrics, plastic surgery, emergency surgery, minimally invasive surgery, surgical teaching, remote consultation and veterinary hospital operating rooms.

Supplier Information

Supplied by Zhangjiagang Bestran Technology Co., Ltd. All surgical lamps comply with international medical device standards. Complete certification documents, OEM/ODM customization, global shipping and professional after-sales technical support are available.
