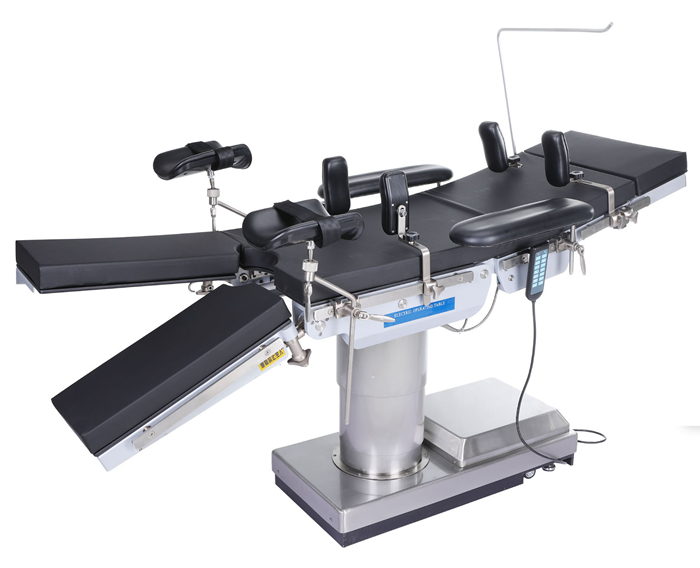

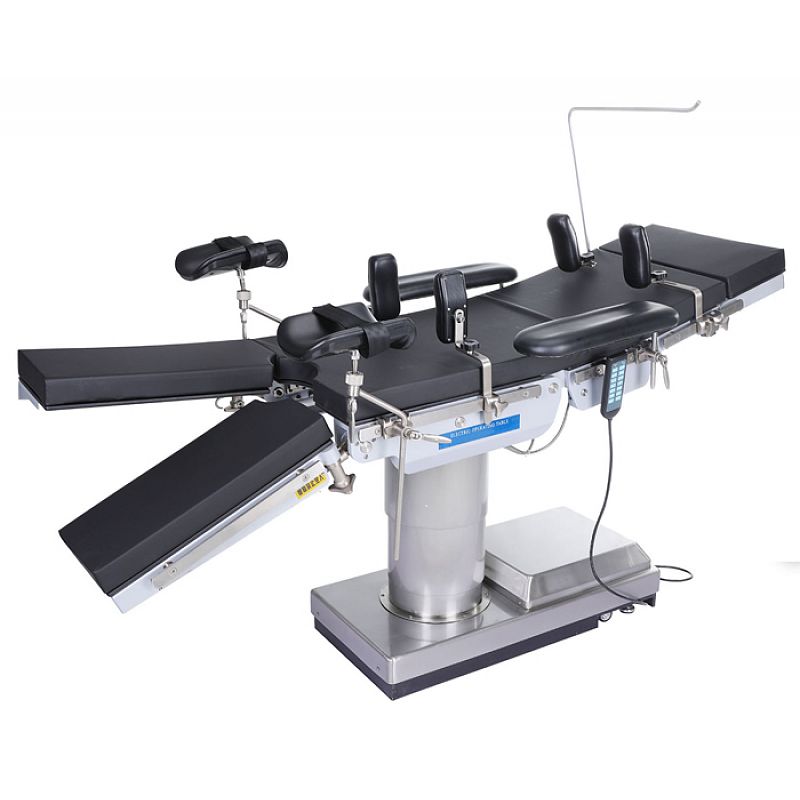

Electric Hydraulic Motor Operating Table

Electric Hydraulic Motor Operating Table


Model:BT-RA006B


Overall size: 2150mm*500mm*580-930mm

Dimension of section:

Head Section:250×500mm

Shoulder Section:250×500mm

Back Section:250×500mm

Seat section:550×500mm

Leg Section:600×240mm


Range of movements:

Reversed Trendelenburg:≥20°

Trendelenburg:≥15°

Lateral Tilt:≥15°

Backward and Forward Movements:≥250mm


Adjustment of sections:

Head Section Raised  from the horizontal:≥45°

Head Section lowered from the horizonta:≥90°

Shoulder Section Raised from the horizontal:≥25°

Shoulder Section lowered  from the horizontal:≥20°

Back Section Raised from the horizontal:≥75°

Back Section Raised from the horizontal:≥30°

Leg Section Lowered from the horizontal:≥90°

Leg section opened:≥90°

Horizonal ratation of tabletop:0~180°

 Lifting speed:4~16mm/s

safe working load:135kg
