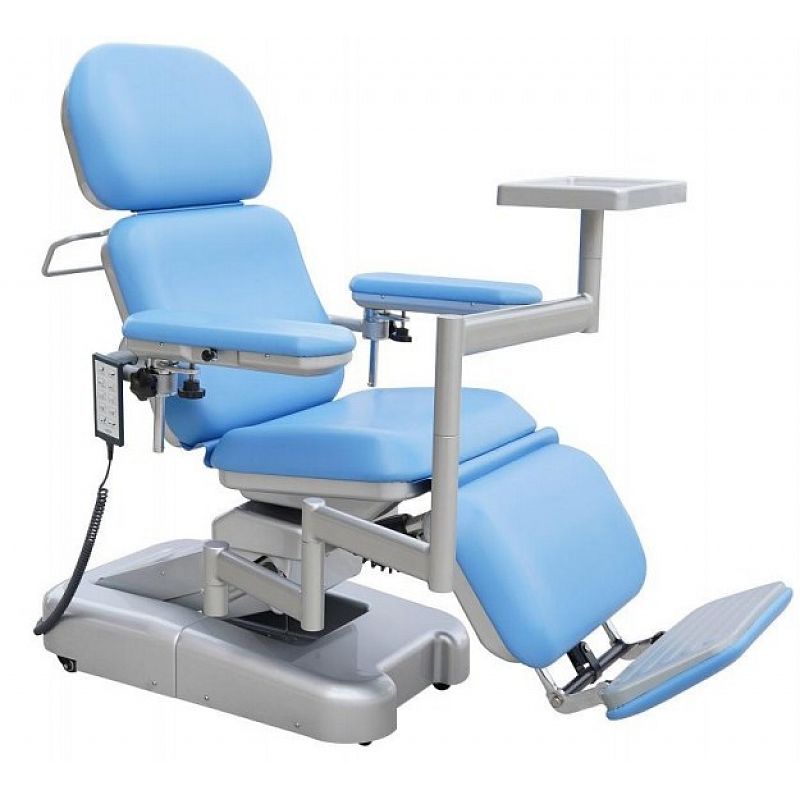

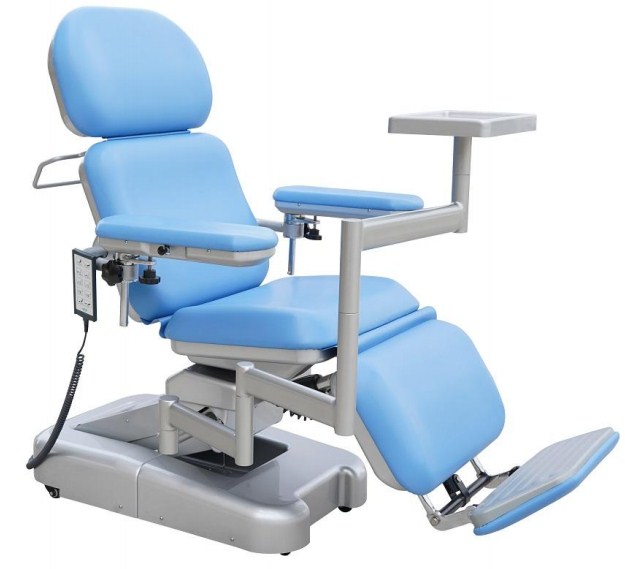

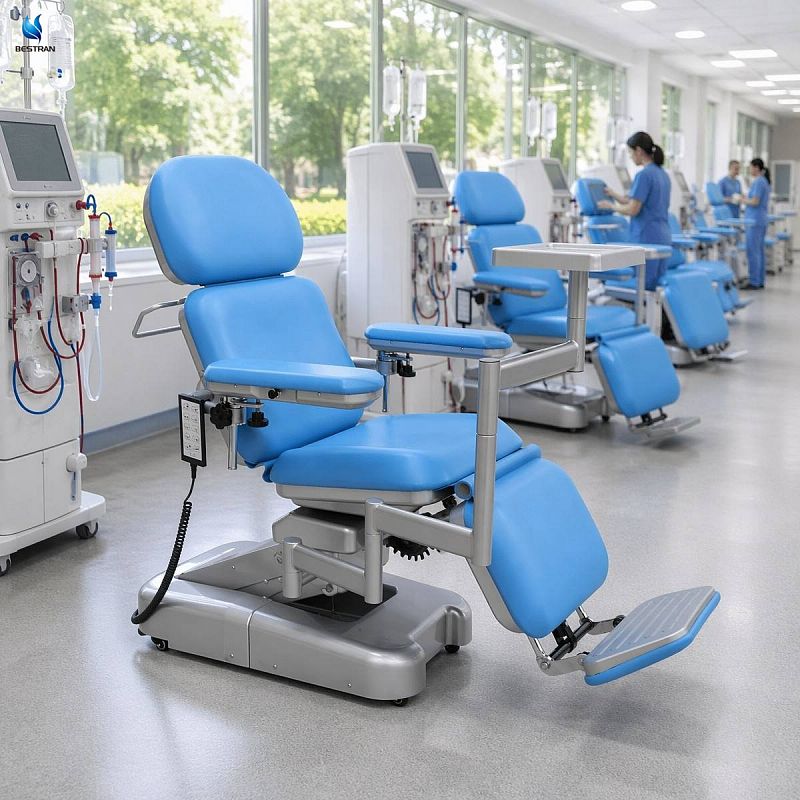

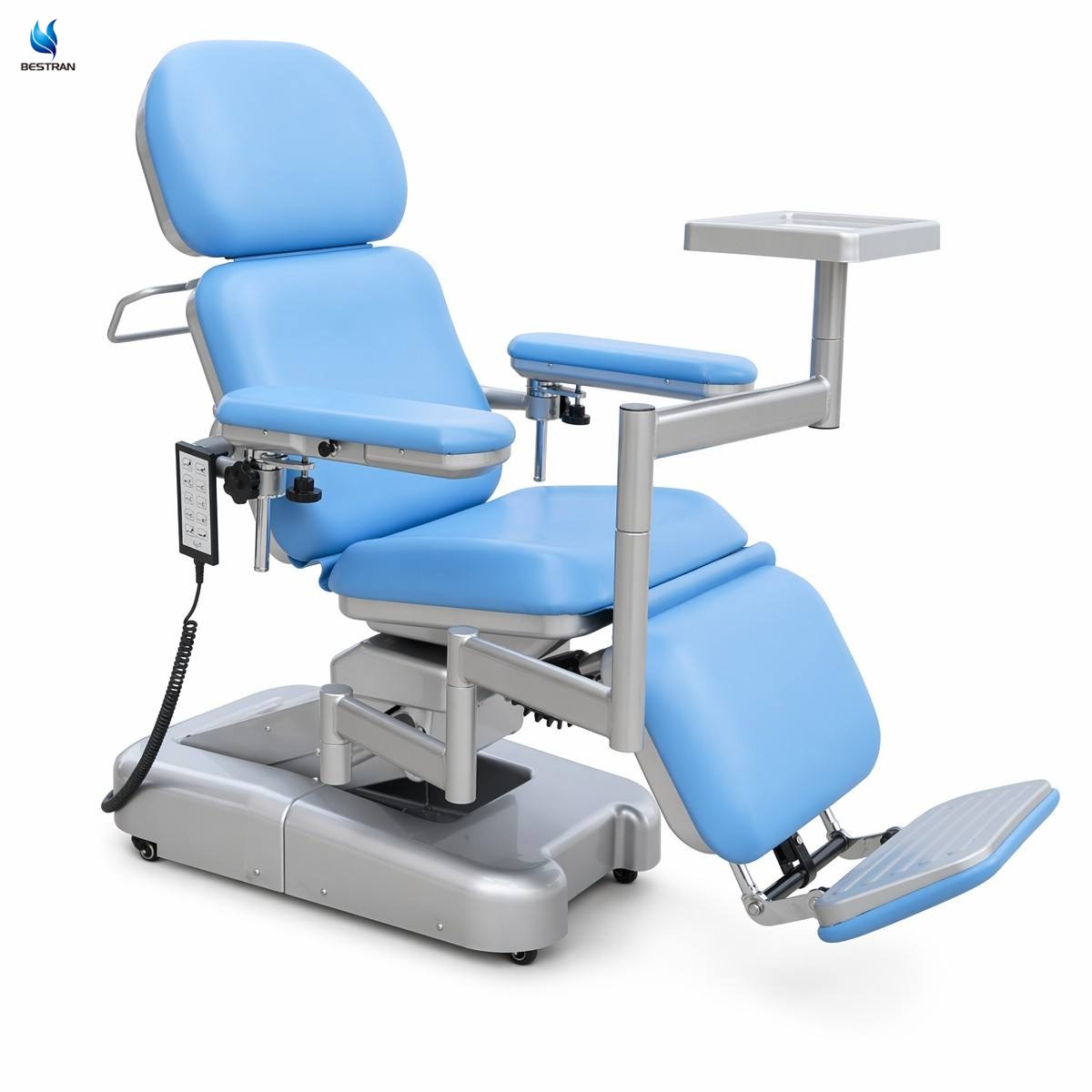

Electric Blood Donation Chair with Four Motors, Height Adjustment and Trendelenburg Position

BT-DN006

Descriptions:

1. The chair consists of five sections, i.e head section, back section, seat section, leg section and a foot rest.

2. The cushions are molded with PU leather covered, which are seamless, preventing from the blood penetration and easy to clean.

3. For getting a most favorable position during the blood donation, the two arm rests can be adjusted in height, move forward/backward, and the angle is also adjustable .

4. Arm rest surface is with a concave shape,better locate the arm and protect the arm from slipping left or right.

5. The telescope foot rest is superior to suit different users, providing them a comfortable support, reduce the fatigue caused by a long period of lying/sitting.

6. The trendelenburg position can be used in case the donor/patient is blood phobia.

7. Four (4) actuators control the electric function of the chair:including back section adjust, height adjust, leg section adjust, foot rest telescope.

8. Head section adjustment is by gas spring system with a switch at its backside, convenient to handle.

9. The back and leg section can work separately or at the same time.

10. The seat section always have a roughly 5 degrees angle for comfort sitting.

11. A push bar is equipped so that the medical staff could easily handle the chair during the patient transfer.

12. Rear casters with brakes to lock the chair in place or release it convenient.

Specification

Chair dimension: 1790± 60mm x 560± 40mm

Head section adjust range: 45°± 5°

Seat height adjustment: 600mm±40mm ~830mm±60mm

Back section adjust range: 75°± 5°

Seat section angle: 5°± 2°

Leg section adjust range: 65°± 5°

Foot section adjust range: 85°± 5°

Foot section telescope: 100mm± 20mm

Arm rest tilt angle: -15°± 5° ~15°± 5°

Arm rest swing out: 45°± 5°

Arm rest height adjustment: 100± 20mm

Arm board slide: 100± 20mm

Safety working load 135kg

Accessory：

Armrest 2 pcs

Hand control 1 pc

Device supporting arm 1 pc (Optional)
