BT-LED700700G-TV Dual-Head LED Surgical Lamp with Camera & 22inch Display System

BT-LED700700G-TV LED Surgical Lamp | Dual 160000Lux Operating Light with Camera & Monitor

BT-LED700700G-TV high-end dual-head LED surgical shadowless lamp with built-in Hikvision camera and 22-inch 1080P display system. Dual 40000–160000 Lux adjustable illumination, 3000K–6700K full-spectrum color temperature, 160 LED beads, 100000h long lifespan, low radiation, ideal for digital hospital operating rooms.

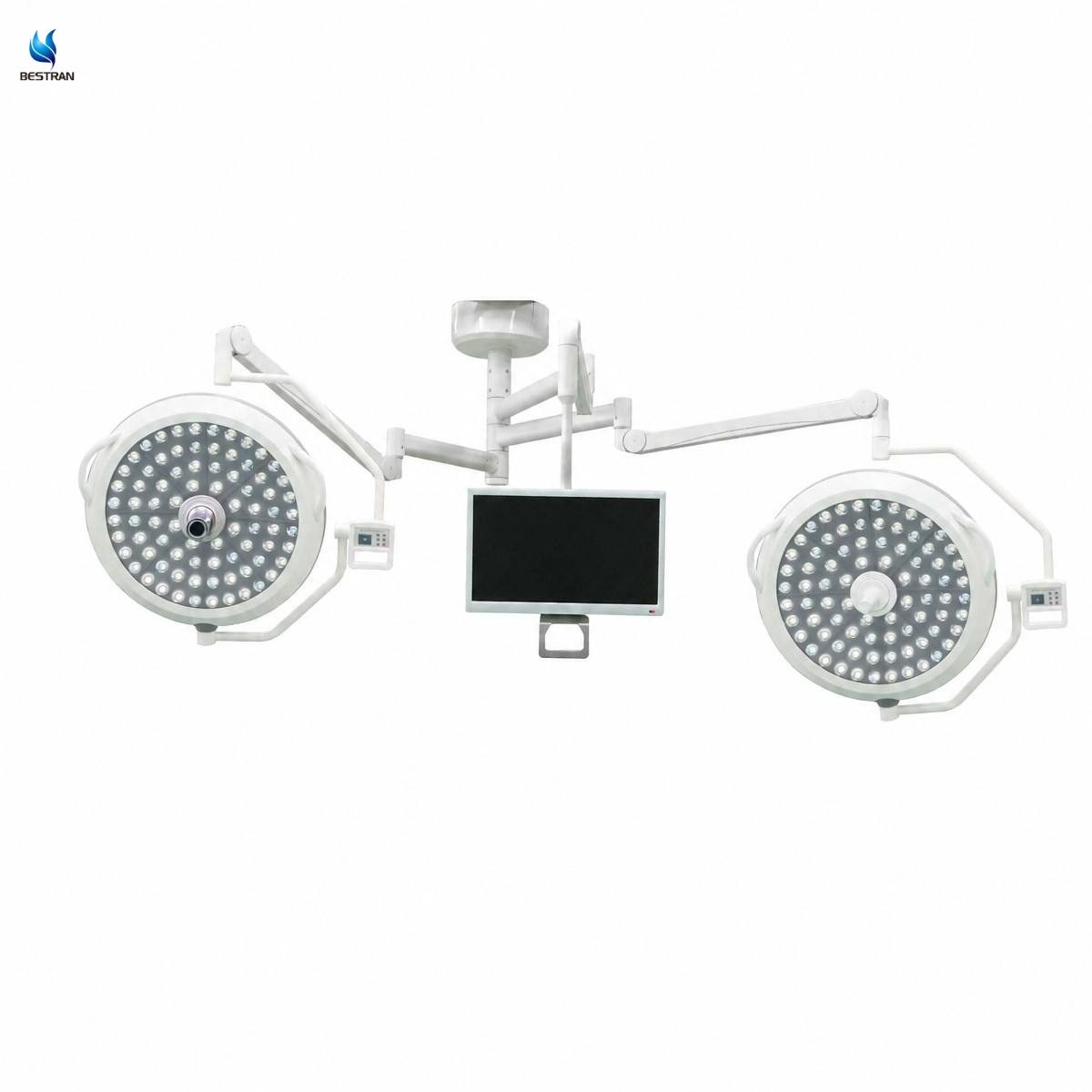

BT-LED700700G-TV Full High Brightness Dual-Head LED Surgical Lamp with Integrated Camera & 22” HD Display System

Product Overview

BT-LED700700G-TV is a premium dual-head medical LED surgical shadowless lamp developed for high-standard digital operating rooms. Equipped with double 160000Lux high-brightness lamp heads, full-range adjustable color temperature, and an all-in-one visual system including a medical-grade camera and 22-inch local HD display, this operating lamp integrates professional surgical lighting, real-time video shooting, recording, storage and display functions. Adopting modular independent control, ultra-low UV radiation, energy-saving LED technology and laminar flow compatible structure, it provides ultra-stable, high-definition and ultra-long-life lighting solutions for complex surgeries, clinical teaching, remote medical consultation and surgical video archiving, perfectly matching modern intelligent hospital construction standards.

Complete Technical Specifications

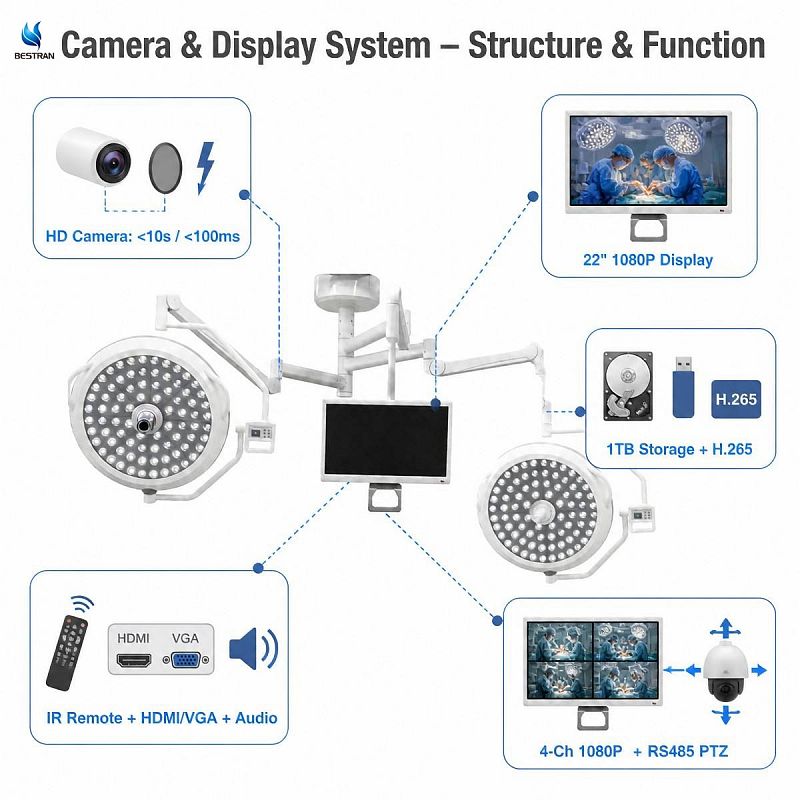

Integrated Hikvision Medical Camera System

The built-in professional medical camera adopts independently optimized Hikvision image processing system, specially adapted for high-brightness shadowless lamp surgical environments. With fast autofocus, strong light suppression and anti-flicker algorithms, it captures ultra-clear, realistic and high-detail surgical videos even under 180000 Lux high illumination. Equipped with a built-in ND filter and multiple scene modes, it delivers more accurate and stable imaging for surgical shadowless lighting scenarios.

Stable Medical-Grade Performance
Manufactured in strict accordance with medical electrical safety standards, with stable electrical performance and durable materials. It supports fast startup within 10 seconds and ultra-low video output latency below 100ms, ensuring real-time synchronous surgical image transmission.

Rich Interfaces & Remote Control
Comes with dedicated SDI interface, optional UART and RS485 communication ports. It supports mainstream protocols including VISA and Pelco P/D, realizing precise PTZ control via computer terminals or professional operating room central control systems.

Ultra-Compact Embedded Structure
Miniature camera movement design: 60mm outer diameter, only 190g lightweight body. It is perfectly embedded inside the surgical lamp without occupying lighting space or affecting laminar flow circulation, realizing hidden and integrated installation.

22-Inch 1080P HD Video Display & Storage System

This surgical lamp is equipped with a built-in 22-inch 1080P high-definition LCD monitor, integrating local video display, IPC decoding, network video preview, intelligent storage and playback functions, building an all-in-one digital surgical recording and display terminal.

• Supports 3G-SDI high-definition video input interface

• 4-channel 1080P high-definition network video preview and storage

• Adopts premium AAC audio encoding, supports 1-in 1-out audio system with built-in stereo speakers

• Extended display output via external HDMI and VGA interfaces

• Diversified local storage: built-in 1TB hard drive, compatible with USB flash drive and portable hard disk

• Intelligent new UI interface, supports automatic scanning and one-click IPC adding

• Dual control modes: infrared remote control + physical button control

• USB 3.0 high-speed interface, realizing fast audio and video recording, copying and backup

• Adopts H.265 high-efficiency compression algorithm, saving over 50% storage space

• Supports RS485 communication, PELCO-P/PELCO-D protocols for PTZ linkage control

• One-key start/stop recording, supports video loop coverage

• Keyword video retrieval function, improving file lookup efficiency

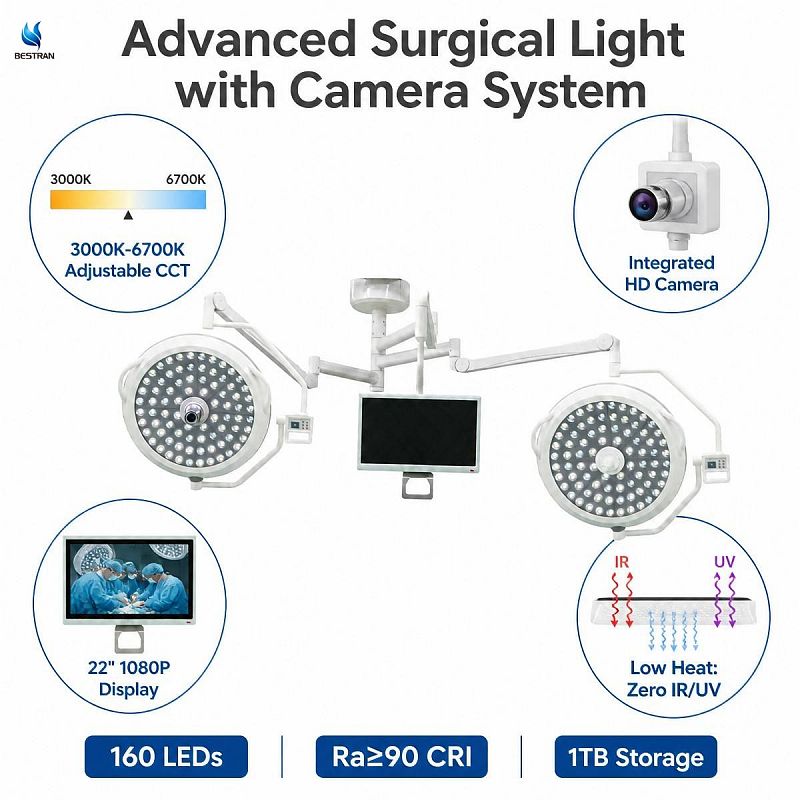

Product Core Features & Advantages

1. 3000K–6700K Full-Spectrum Adjustable Color Temperature (Ra≥90)
The lamp holder is equipped with multi-specification professional medical LED beads. It maintains a high color rendering index of Ra90 while realizing wide-range stepless color temperature adjustment. It accurately restores the true color of human tissues, organs and blood, greatly improving surgical tissue resolution and clinical diagnosis accuracy.

2. Dual-Head 160000Lux Ultra-High Brightness & Uniform Shadowless Lighting
Adopts high-performance customized optical lens group to focus LED beams evenly on the surgical field. Both lamp heads support independent digital stepless dimming from 40000 to 160000 Lux. The lighting is uniform, shadow-free and high-penetrating, meeting the rigorous lighting demands of large open surgery and precise fine surgery.

3. Modular Independent Control, Ultra-Low Failure Rate
Each LED light group adopts modular design with 6–10 beads per module and an independent electronic control system. A single LED bead failure will not affect the overall operation of the lamp head, ensuring long-term stable and continuous operation in high-frequency surgical scenarios.

4. Precision Manual Focusing, Multi-Scenario Adaptation
Professional manual focusing system enables flexible adjustment of spot size and focal length. It perfectly matches the large-spot high-illumination demand of major open surgeries and the small-spot high-precision lighting requirement of conventional minimally invasive and window surgeries.

5. Ultra-Low Heat & Radiation, Safe for Wounds
LED light source produces almost no infrared thermal radiation and extremely low ultraviolet radiation. It effectively reduces heat stimulation and dryness of surgical wounds, protecting patient tissues and improving surgical comfort.

6. 100,000 Hours Ultra-Long Service Life
Far superior to traditional halogen and gas lamps (600–5000 hours service life). The ultra-long LED lifespan drastically reduces equipment replacement frequency and later maintenance costs for medical institutions.

7. 3D Optimized Layout, High Energy Efficiency
The 1W high-efficiency LED beads are arranged through 3D spatial simulation software. It achieves top-level medical lighting performance with the most optimized bead layout, realizing energy-saving and low-consumption operation.

8. Laminar Flow Compatible Streamlined Design
The overall streamlined structure conforms to operating room laminar flow turbulence standards. It ensures smooth flow of purified air, avoids air turbulence and dust accumulation, stabilizes the working temperature of the lamp body, and effectively extends the service life of LED beads.

9. Premium Flexible Spring Arm System
Equipped with high-quality durable spring balance arm, the lamp head supports 360° free rotation, flexible lifting and arbitrary angle positioning. The ultra-wide moving range adapts to operating rooms with different building heights and structural conditions.

10. 135°C High-Temperature Sterilizable Detachable Handle
The detachable surgical handle jacket supports high-pressure high-temperature sterilization up to 135°C. It allows sterile adjustment of lamp focus, position and angle during surgery, fully complying with international medical sterile operation standards.

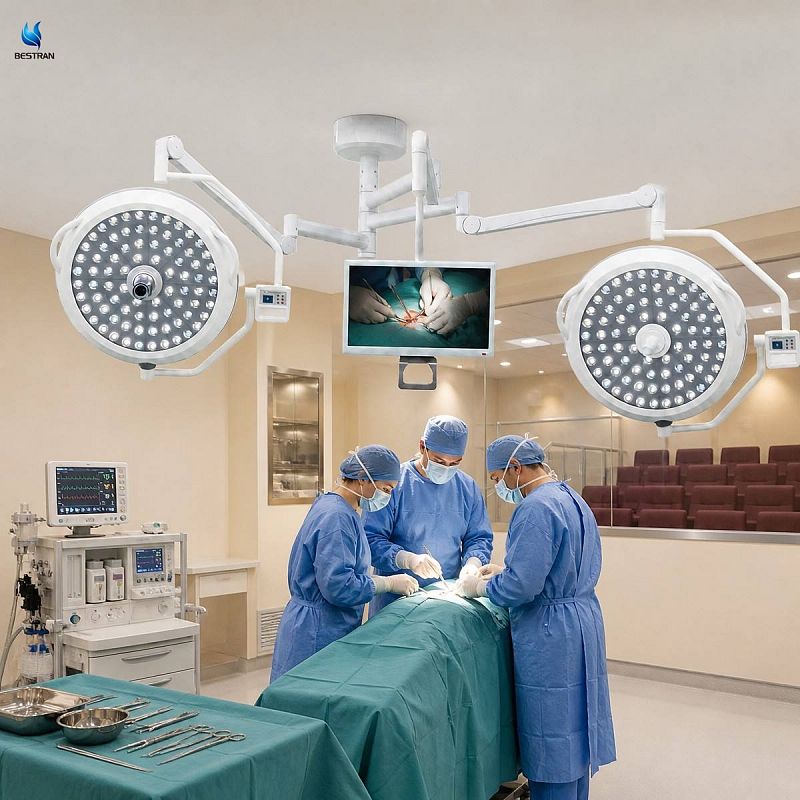

Application Scenarios

Suitable for digital intelligent operating rooms, general surgery, orthopedic surgery, obstetrics and gynecology, plastic and aesthetic surgery, emergency surgery, minimally invasive surgery, clinical surgical teaching, remote medical consultation and high-grade veterinary operating rooms.

Manufacturer & Service Support

Supplied by Zhangjiagang Bestran Technology Co., Ltd. All products comply with international medical device standards. We provide complete qualification certificates, OEM/ODM customization, global shipping solutions and professional lifelong after-sales technical support for global medical distributors and hospital projects.
