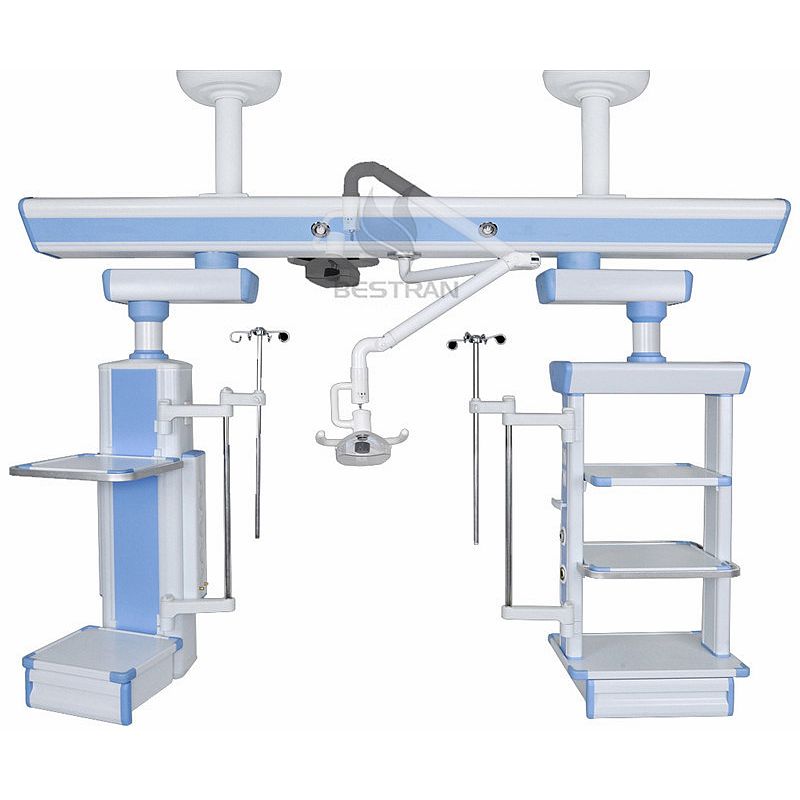

Cantilever type ICU pendant

Dry and Wet section seperated ICU pendant, cantilever type

BT-180C-1

1)Power supply: AC220V, 50Hz; Input Power: 6KVA;
2)The bridge length 2500 ~ 3200mm
Standard accessories:lights 2pcs;Power valve 1pc; Gas valve 1pc;
Optional accessories:cantilevered work lights, camera
3)The dry section of the column:
1.Right and left movement: 200 ~ 500mm, arm rotation radius 500mm, arm and function box horizontal rotation angle: 340 °;
2.instrument platform: Layer 3 (height adjustable), rounded bumper design, weight load 50KG
3.gas terminal standard configuration: oxygen 1pc, sunction  1pc;air 1pc;
A. Different colors and shapes, with anti-pick wrong function;
B. more than 20,000 times mating cycles;
C. using the secondary seal, with three states (on, off, pull), can carry air service;
4. outlet: 6pcs(220V / 10A);ground terminals: 2pcs;Network Interface: RJ45 1pc;a drawer 1pc;brake 1pc;adjustable stainless steel infusion pump IV pole 1 set;
5. Weight load: more than 300kg;
4) The wet section of the column::
1.Right and left movement: 200 ~ 500mm, arm rotation radius 500mm, arm and function box horizontal rotation angle: 340 °;
2.instrument platform: Layer 2 (height adjustable), rounded bumper design, weight load 20KG
3.gas terminal standard configuration: oxygen 1pc, sunction  1pc;air 1pc;
A. Different colors and shapes, with anti-pick wrong function;
B. more than 20,000 times mating cycles;
C. using the secondary seal, with three states (on, off, pull), can carry air service;
4.outlet:8pcs(220V / 10A);ground terminals: 2pcs;drawer 1pc;brake 1pc;adjustable stainless steel infusion pump IV pole 1 set;Storage basket 1pc;
5.Weight load: more than150kg;
6)The main material: high-strength aluminum alloy;
7)The surface treatment using imported high-voltage electrostatic powder spray;
8)Ceiling-mounted, high stability;
