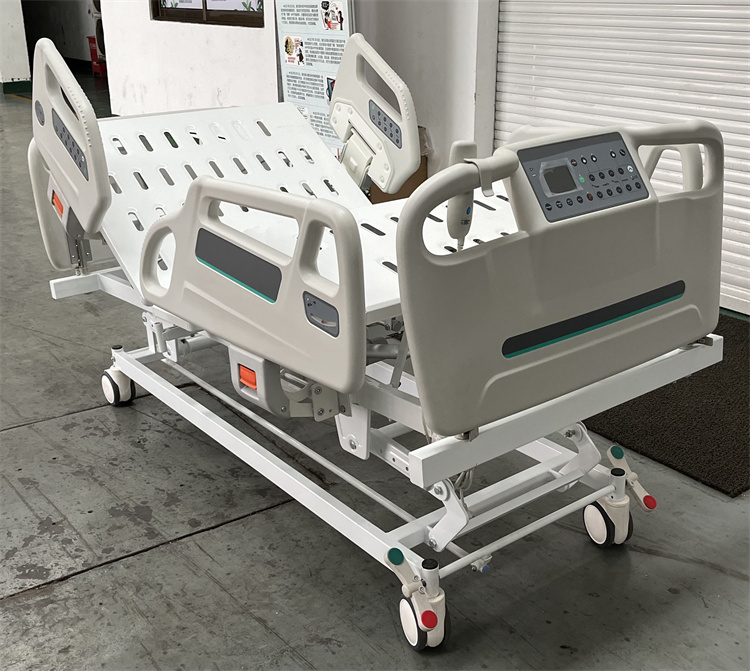

5-function electric medical bed

5-Function electric hospital bed

Model:BT-AE043


Features:

1) Overallsize (L*W*H):2100*1020*450-765mm, platform size:1910*880mm

2) Frame: steel, treated by sand-balsting and electrostatic powder-coating

3) Bedboard: abs material, 4-part

4) Headboard/footboard:ABS,Detachable

5) Side rail: Detachable, ABS

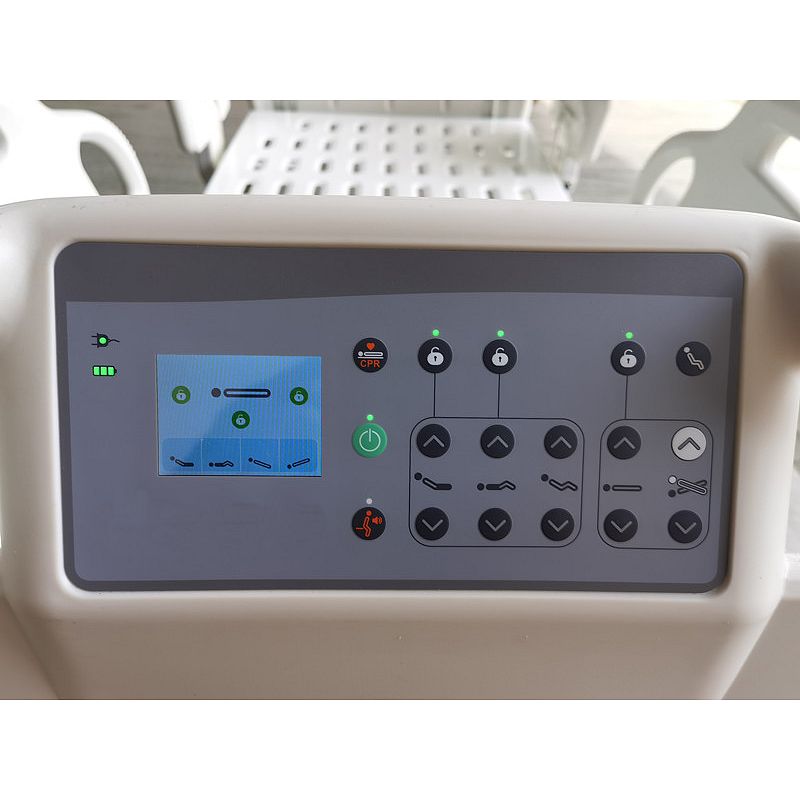

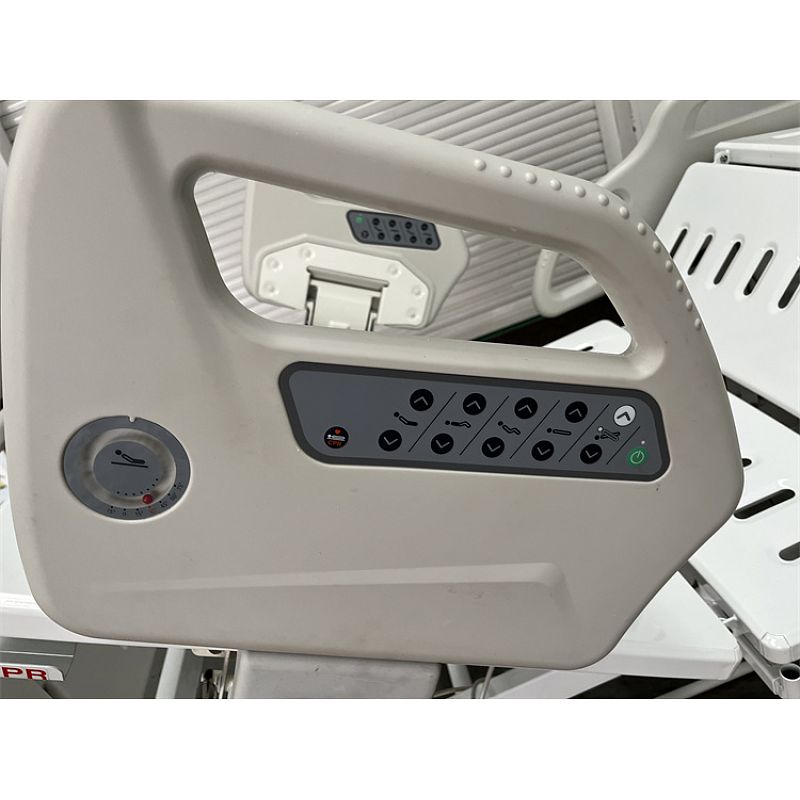

6) Rail controller: embedded on side rail at head side, with electric CPR button, Battery power display and angle indicator .

7) Remote handset controller 1pc

8) Motor: Jiechang motor from China,with backup batteries

9) Manual CPR handles at head side

10) Castors: four Central-controlled silent wheels, φ125mm;

11)Weight load: static safe load 400kg, dynamic safe load: 170kg

12)Standard accessories:I.V pole 1pc, IV pole holes 4pcs, Drainage hooks 2pcs,


5-function:

1) Backrest max upward angle: 70°

2) Footrest max upward angle: 30°

3) Height adjustment: 450-765mm

4) Trendelenburg: 12°

5)Anti-trendelenburg: 12°
