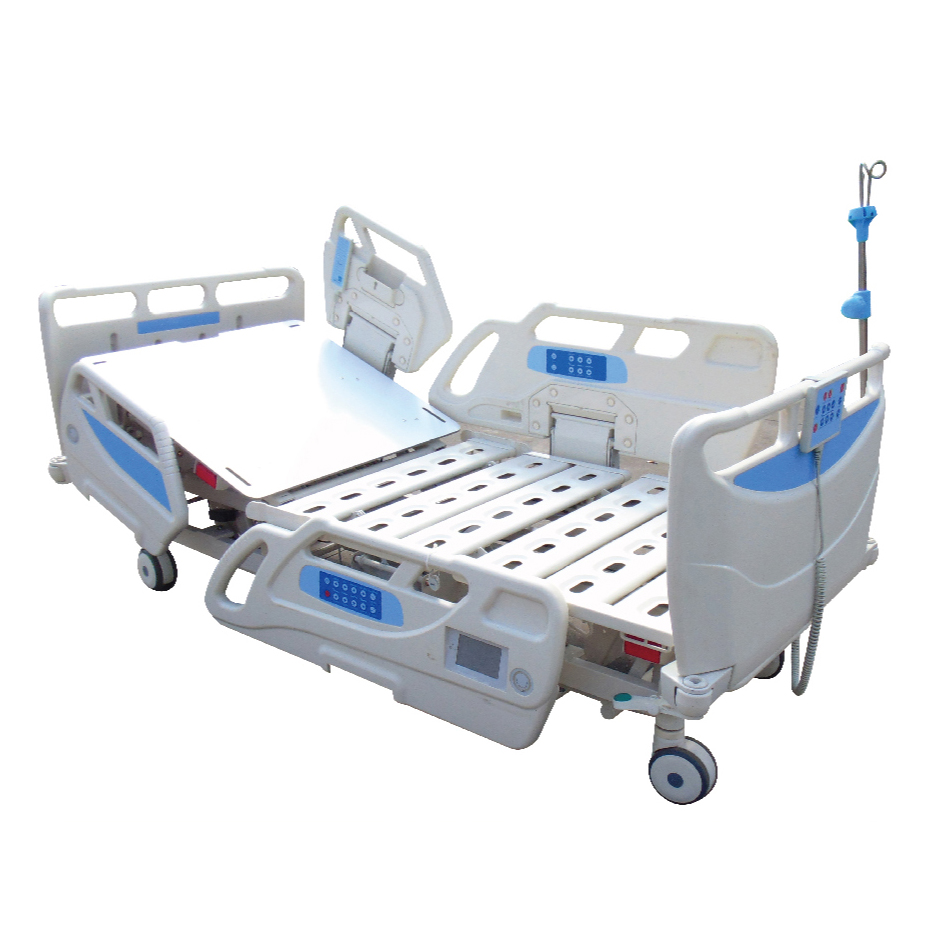

5-function electric icu bed

5-function electric ICU bed


1) Overallsize: 2175mm±10mm (Stretchable length 2320)
 Overall width: 990mm
2) Frame: steel, treated by sand-balsting and electrostatic powder-coating
3) Headboard/footboard:ABS,Detachable
4) Side rail: ABS, split up and down, safety guardrail
5) Rail controller: embedded on side rail at head side
6) Handset controller: hand-held remote control
7) Nurse controller: embedded on footboard
8) Motor: Linak motor from Denmark,with backup batteries
9) Manual CPR handles at head side
10)Binding device:5 pcs each side,under the bed board
11)Castors: four Central-controlled silent wheels, φ125mm
12) Four foot pedals at each side:all functions can be operated by the pedals on both side
13) Angle indicators:ball type angle indicator
14)Standard accessories:I.V pole 1pc, IV pole holes 4pcs, Drainage hooks 2pcs
1) Back up 0-75°
2) Knee up 0-45°
3) Height adjustment:420-800mm
4) Trendelenburg: 0-16°
5) Anti-trendelenburg:0-16°
