160,000 Lux LED Surgical Light with Electronic Focusing and Shadow Compensation

 Model:BT-LED360360

Product Overview

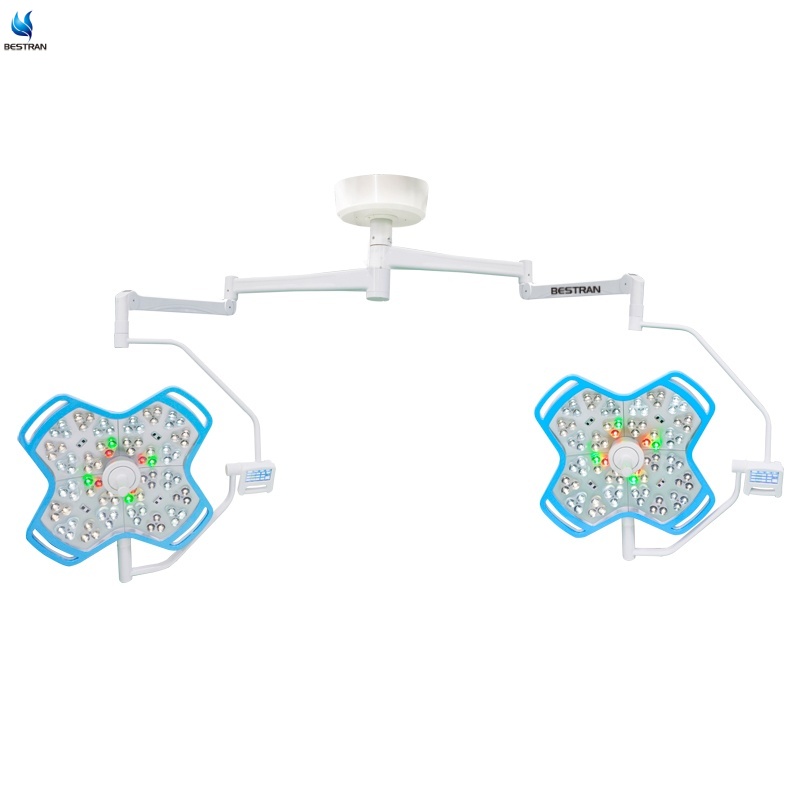

The BESTRAN 160,000 Lux LED Surgical Light is a premium double-dome operating light designed for modern operating rooms requiring high illumination, accurate color rendering and intelligent shadow management.

Featuring 168 high-performance LEDs, an advanced triple-lens optical system, electronic focusing and automatic shadow compensation, the light delivers consistent illumination across deep surgical cavities while minimizing glare and heat.

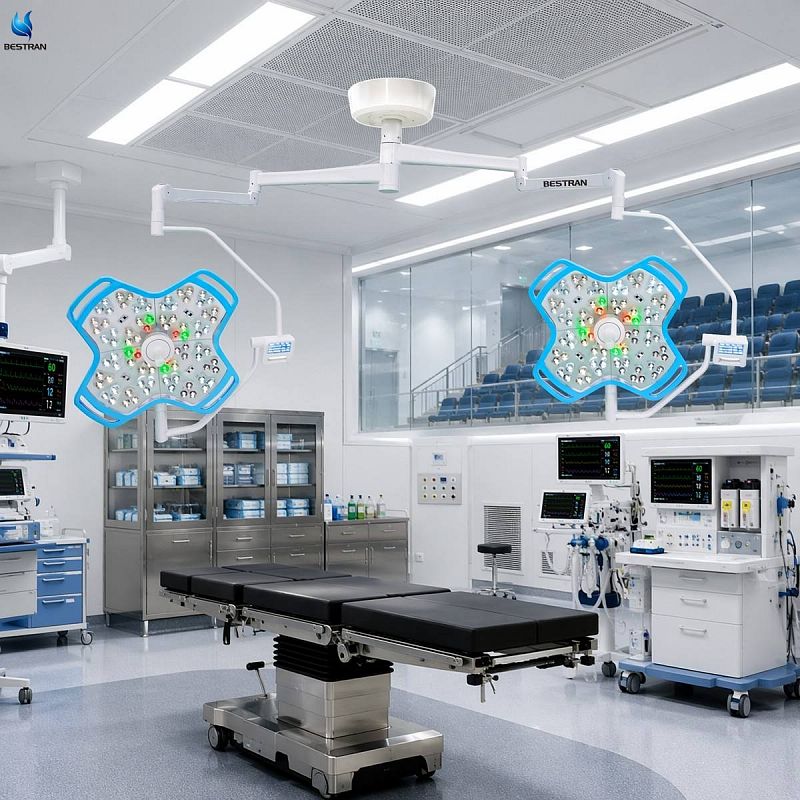

Its ultra-thin windmill-shaped lamp head is engineered to maintain laminar airflow according to DIN 1946-4, helping reduce airflow disturbance in clean operating theatres. The integrated LCD touchscreen and lamp-to-lamp synchronization simplify operation and improve surgical efficiency.

Key Features

High-Intensity Surgical Illumination

l Up to 160,000 Lux illumination per dome

l Uniform and shadow-free lighting

l Suitable for major and complex surgical procedures

Triple-Lens Optical System

l 168 premium LEDs (84 + 84)

l 28 triple-lens optical modules

l Four independent light source groups

l Excellent light uniformity and depth

Electronic Focusing

l Five-level electronic spot adjustment

l Adjustable from the touchscreen or sterilizable handle

l Precise illumination for different surgical procedures

Intelligent Shadow Compensation

l Automatically compensates for light blocked by surgeons or equipment

l Maintains stable illumination throughout surgery

l Reduces the need for manual adjustments

Laminar Flow Compatible Design

l Ultra-thin windmill lamp head

l Optimized airflow

l Meets DIN 1946-4 laminar flow requirements

l Helps reduce airborne contamination

Dual Lamp Synchronization

l Control both lamp heads from one LCD touchscreen

l Adjust brightness, color temperature and focus simultaneously

l Improves operating room efficiency

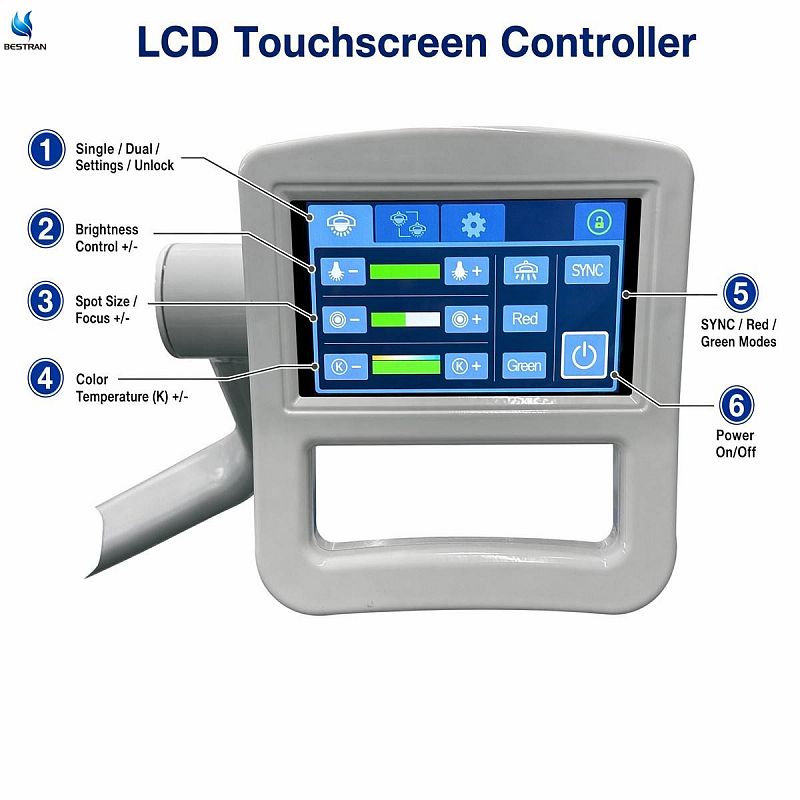

LCD Touchscreen Control

l Intuitive LCD interface

l Brightness adjustment

l Color temperature adjustment

l Power control

l Electronic focus control

Sterilizable Operating Handle

l Central removable handle

l Steam sterilizable at 134°C

l Easy daily cleaning and maintenance

Long LED Service Life

l LED lifespan up to 100,000 hours

l Low maintenance

l Reduced operating costs

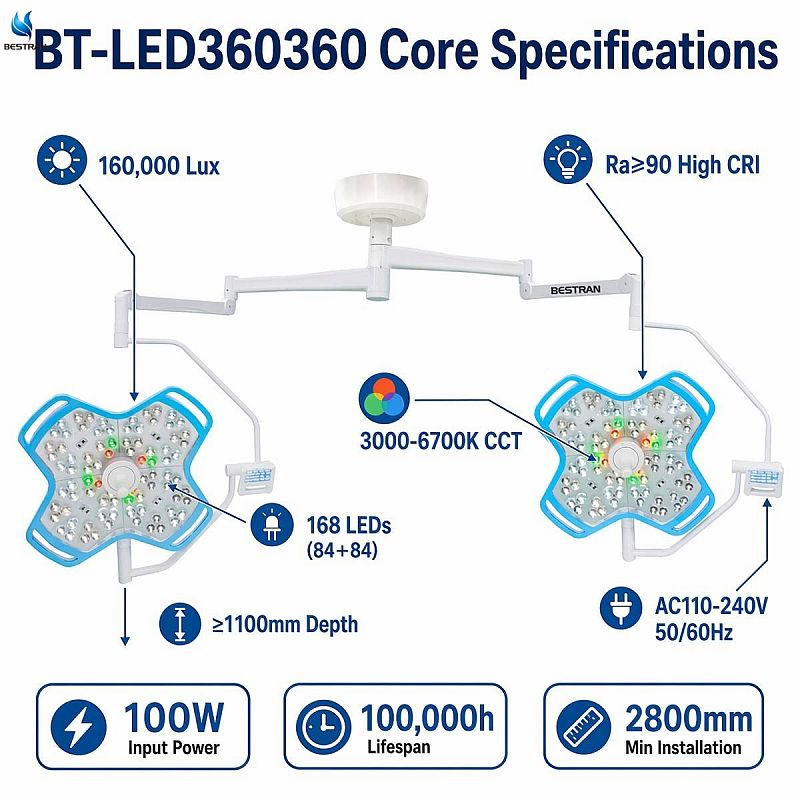

Technical Specifications

Product Benefits

Superior Surgical Visibility

High illumination and deep light penetration provide excellent visibility, even during complex surgical procedures.

Reduced Shadow Interference

Automatic shadow compensation maintains consistent brightness when the light path is obstructed.

Accurate Tissue Identification

A wide color temperature range and CRI ≥90 help surgeons distinguish tissue colors more naturally.

Infection Control Support

The aerodynamic ultra-thin lamp head minimizes airflow disruption in laminar flow operating rooms, supporting a cleaner surgical environment.

Lower Operating Costs

Long-life LEDs reduce maintenance requirements and replacement frequency.

Applications

Suitable for:

l General Surgery

l Orthopedic Surgery

l Neurosurgery

l Cardiovascular Surgery

l Plastic Surgery

l ENT Surgery

l Urology

l Gynecology

l Emergency Surgery

l Trauma Surgery

Departments

Recommended for:

Hospital Departments

l Operating Room (OR)

l Hybrid Operating Room

l General Surgery

l Orthopedics

l Neurosurgery

l Cardiac Surgery

l Obstetrics & Gynecology

l Urology

l ENT Department

Healthcare Facilities

l General Hospitals

l Specialized Surgical Centers

l Ambulatory Surgery Centers (ASC)

l Private Hospitals

l University Hospitals

Available Options

Optional Configurations

l HD Camera System

l 4K Camera System

l Video Recording Module

l Medical Monitor Arm

l Ceiling Single Dome Version

l Ceiling Double Dome Version

l Mobile Surgical Light Version

l Battery Backup

l Wireless Wall Control

OEM Services

BESTRAN offers:

l Customer logo

l Custom color accents

l Private labeling

l Packaging customization

l User manual customization

Why Choose BESTRAN

Professional Surgical Lighting Manufacturer

BESTRAN specializes in LED surgical lights, operating tables and operating room equipment with extensive experience serving hospitals worldwide.

Advanced Optical Technology

Our triple-lens optical system, electronic focusing and intelligent shadow compensation provide outstanding illumination quality for demanding surgical procedures.

OEM & ODM Solutions

We offer flexible customization including branding, accessories, packaging and technical configurations for distributors and healthcare projects.

Strict Quality Assurance

Each surgical light undergoes rigorous testing for:

l Illuminance accuracy

l Color temperature consistency

l Mechanical stability

l Electronic control reliability

l Safety and durability

Global Project Experience

BESTRAN operating room equipment has been exported to more than 100 countries and is trusted in hospitals, clinics and surgical centers worldwide.

FAQ

Q1. What is the maximum illuminance of this surgical light?

The light provides up to 160,000 Lux illumination for each lamp head.

Q2. Does the light support electronic focusing?

Yes. It features a 5-level electronic focusing system that can be operated from the LCD touchscreen or the sterilizable handle.

Q3. Is it suitable for laminar flow operating rooms?

Yes. The ultra-thin windmill-shaped lamp head is designed to comply with DIN 1946-4 laminar flow requirements.

Q4. How many LED light sources are included?

The system uses 168 high-performance LEDs (84 + 84) arranged in 28 triple-lens optical modules with four independent light source groups.

Q5. Can two lamp heads be controlled together?

Yes. The dual-lamp synchronization function allows users to control brightness, color temperature, focus and power for both lamp heads from a single LCD touchscreen.

Q6. Can the product be customized?

Yes. BESTRAN offers OEM services including customer logo, private labeling, customized packaging and optional camera or monitor systems.

Related Products

l Ceiling LED Surgical Light (Single Dome)

l Mobile LED Surgical Light

l LED Examination Light

l Electric Operating Table

l Hydraulic Operating Table

l Medical Pendant System

l Surgical Scrub Sink

l Operating Room Equipment

Call to Action

Illuminate Every Procedure with BESTRAN LED Surgical Lights

The BESTRAN 160,000 Lux LED Surgical Light combines advanced optical technology, intelligent shadow compensation and ergonomic control to deliver reliable illumination for modern operating rooms.

Whether you are equipping a new hospital, upgrading an operating theatre or supplying a healthcare project, BESTRAN offers factory-direct manufacturing, OEM/ODM customization and professional global export support.

Contact us today to request a quotation, technical specifications or a customized operating room lighting solution.

Advanced Optical Technology for Modern Operating Rooms

l 168 high-performance LEDs combined with a triple-lens optical system deliver uniform illumination with excellent depth.

l Five-level electronic focusing enables quick adjustment of the light field to match different surgical procedures.

l Automatic shadow compensation maintains consistent brightness when surgeons or equipment obstruct the light path.

l Ultra-thin windmill lamp head supports laminar airflow in accordance with DIN 1946-4, helping maintain a clean operating environment.

l Dual lamp synchronization and LCD touchscreen control simplify operation and improve workflow in busy operating theatres.
