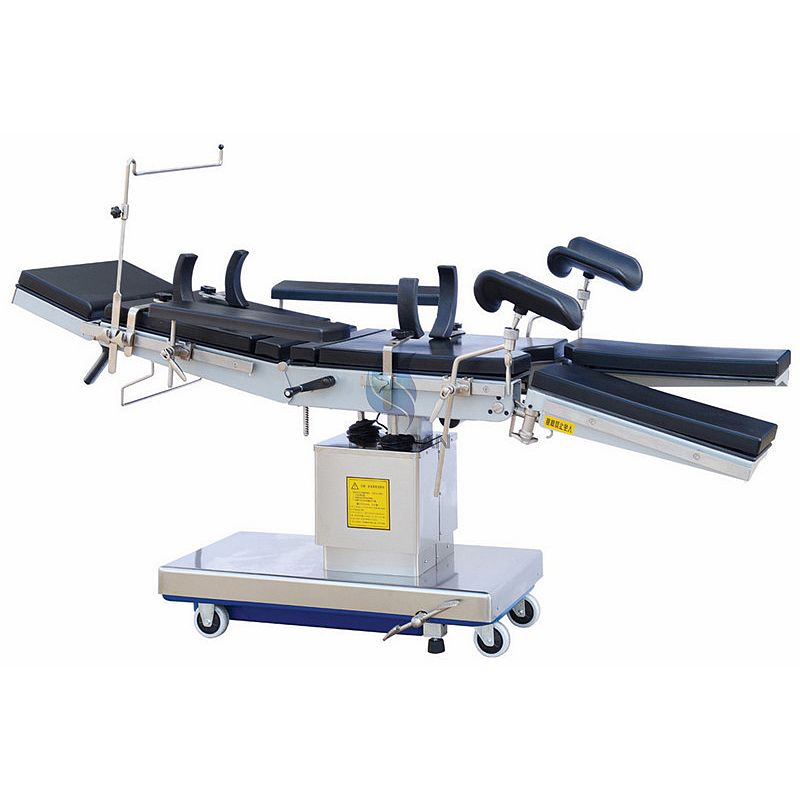

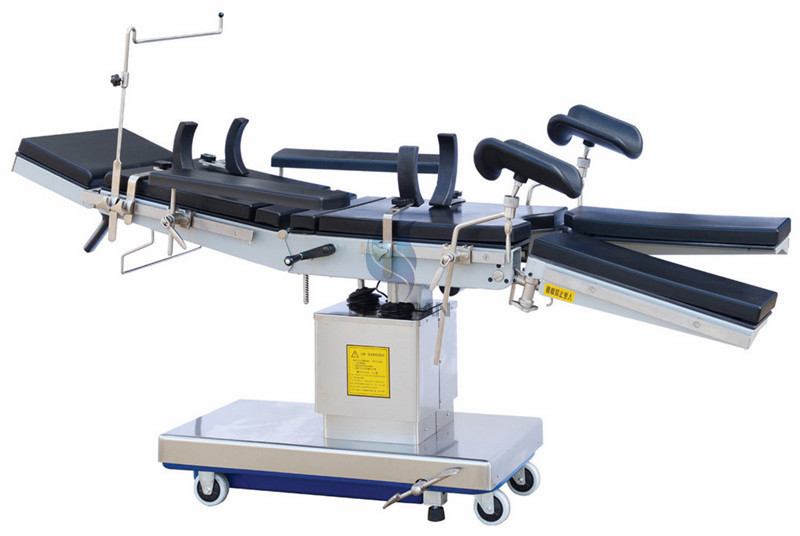

Electric-motor operating table

Electric-motor operating table

BT-RA013

Main feature:
longitudinal movement 250mm,with emergency power,abs base cover, suitable for x-ray and c-arm

Overall Dimension of table:2100*500*750-1000mm
Dimension of section:
Head Section:250×500mm;Back Section:545×500mm;Waist Section:75×500mm;Seat section: 450×500mm;Leg Section:600×240mm
Range of movements:
1)Reversed Trendelenburg≥20°Trendelenburg≥15°
2)Lateral Tilt≥15°
3)Backward and Forward Movements≥250mm
4)Head Section Raised  from the horizontal≥45°
5)Head Section lowered from the horizonal≥90°
6)Back Section Raised from the horizontal≥75°
7)Back Section Raised from the horizontal≥30°
8)Section Lowered from the horizontal……………………………………≥90°
9)Leg section opened………………………………………≥90°
10)Kidney Bridge Elevated……………………………………≥80mm
11)Lifting speed…………………………………………………………4~16mm/s
12)safe working load…………………………………………………135kg
13)Device safety sort I     B
14)Ingress Protection:IPX4
15)Power:(AC)220V,50Hz
16)Internal electric source:(DC)24V
17)Battery capacity ≥ 2.4AH
