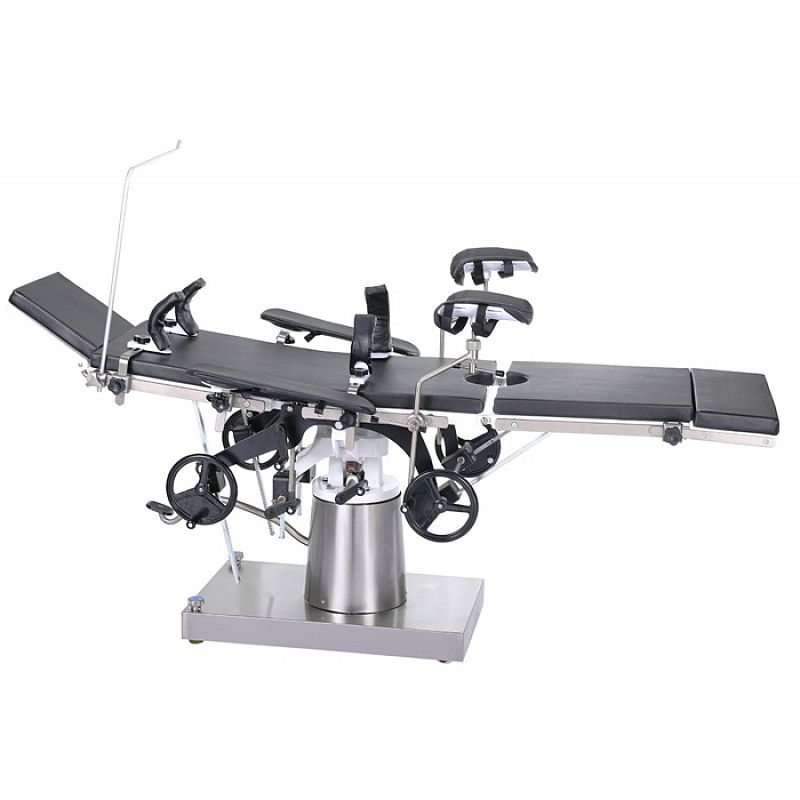

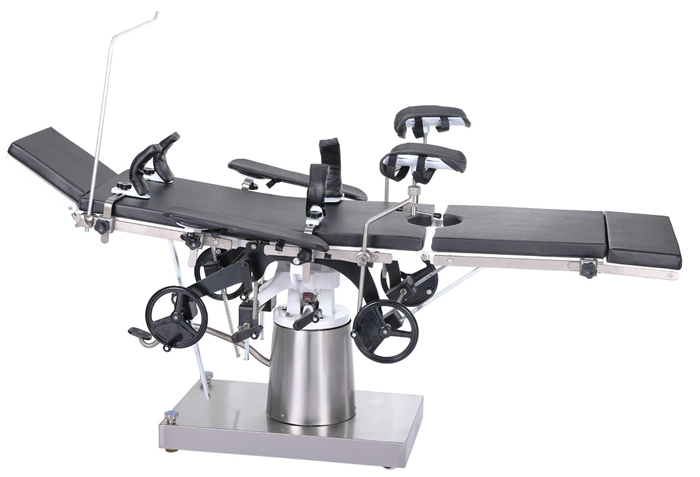

Univesal Manual Operating Table

Model：BT-RA021

Dimensions of Table Top：

Overall length*Width:2100mm*480mm*750-950mm

Dimensions of Sections：

Head Rest…………280×320mm

Back Section………500×480mm

Kidney Bridge……85×415mm

Seat Section………450×480mm

Leg Section…………500×480mm

Foot Rest…………200×533mm

Range of Movements：

Max Reversed Trendelenburg…≥300

Max Trendelenburg………≥200

Max Lateral Tilt……≥180

Adjustments of Sections：

Head-Rest raised from the horizontal……≥450

Head-Rest lowered from the horizontal……≥900

Back-Section raised from the horizontal………≥750

Back-Section lowered from the horizontal……≥180

Kidney Bridge Elevation……120mm

Leg-Section lowered from the horizontal………≥90 0

Foot-Rest can be kept horizontally or perpendicularly to the Leg Section.
