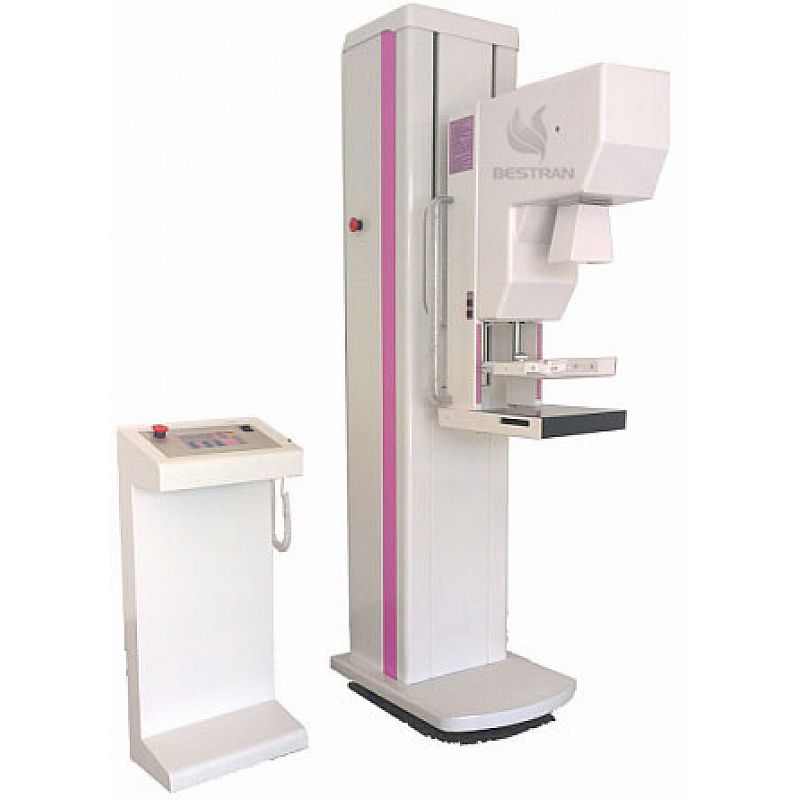

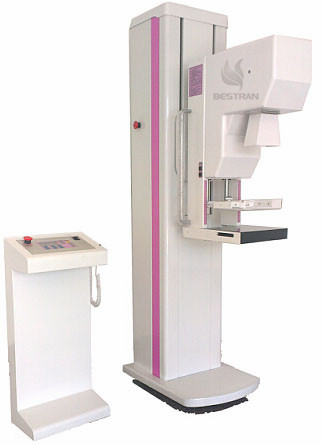

Mammography System
BT-MA9800B
I. Application
A mammogram is a special, low-dose X-ray technique used to take a picture of the breast, detecting and diagnosing any abnormal lumps or masses in breast tissue. It is one of the best tools for the early identification of breast cancer. With early identification, breast cancer can be cured while in the first stage, and recovery is more likely.
II. Specification
|
Item |
Parameter |
Remark |
|
X-ray Generator |
Generator Type: High Frequency Inverter 80kHz Radiographic Ratings: Large Focal Point 20-35kV/10-510mAs Small Focal Point 20-35kV/10-100mAs Power Rating: 6kVA |
|
|
X-ray Tube
|
Focal Spot Size: Dual Focus 0.1 / 0.3mm Target Material: Molybdenum (Mo) Port Material: Beryllium (Be) Anode Heat Storage: 300kHU Anode Cooling: Air cooling Filtration: Mo（0.03mm）,Al（0.5mm） |
Model: IAE C339V
|
|
Radiographic Stand |
C-ARM: Vertical Movement: 580mm Rotation: +175°～-180° SID: 650mm |
|
|
Cassette Image Receptor |
Bucky Device: 18×24cm Bucky drive mechanism Grid Ratio: 5:1, 30 Line/cm
|
24x30cm for option |
|
Others |
Line Voltage 220V ac±10% 25A, Single phase |
110V for optional |
III. Configuration:
|
No. |
Item |
Quantity |
|
1 |
X-ray Tube |
1 |
|
2 |
X-ray Generator |
1 |
|
3 |
Radiographic Stand |
1 |
|
4 |
C-ARM |
1 |
|
5 |
Cassette Image Receptor |
1 |
|
6 |
Compression devices |
1 |
|
7 |
Comfortable Compression |
1 |
|
8 |
Paddle switch |
2 |
|
9 |
Control console |
1 |
|
10 |
Exposal switch and connected line |
1 |
|
11 |
Power wire |
1 |
|
12 |
Grounded wire |
1 |
|
13 |
Fuse |
2 |
|
14 |
Operation manual |
1 |
|
15 |
Maintenance Reference Manual |
1 |
IV. Features:
Comfortable Compression
When some degree of pressure is required for radiography, it allows you to presser the appropriate pressure(up to a maximum of 20kg)and is equipped with MICOM Control’s Soft-touch system which is designed to minimize the discomfort of the examine with in the pressure range.
Tissue Compression: Manual and Motorized (Max 20kg)
Compression Force and Thickness Data Display
Micro Control’s Compression
Automatic Release
Intelligent Automatic Exposure Control（AEC）
With the Automatic Exposure Control system, it is possible to produce images with reliable intensity suitable for and film, screen, or method of radiography.
Furthermore, it greatly enhances the convenience of radiography by embedding the Full-AEC function which is capable of utilizing the Auto kV
Type: Solid-State Detector
Microprocessor Control
AEC Mode: Full AEC（Auto kV）
Semi AEC (kV Select)
Manual (kV, mAs, Select)
Density Adjustment: 16 density steps
X-ray Tube
Model: China Hangzhou LR01
Focal Spot Size: Dual Focus 0.2 / 0.4mm
Target Material: Molybdenum (Mo)
Port Material: Beryllium (Be)
Anode Heat Storage: 100KJ
Anode Cooling: Air cooling
Filtration: Mo（0.03mm）Al（0.5mm）
