High Frequency Digital C-arm

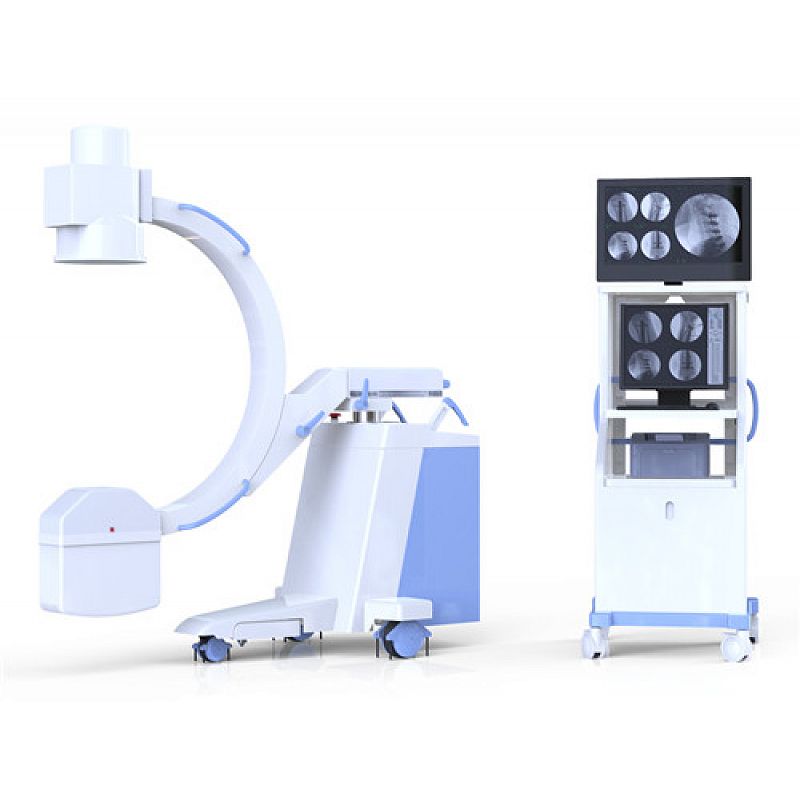

High Frequency Mobile Digital C-arm System

Model:BT-XC01


I. Usage:

Orthopaedics: osteopathy, diaplasis, nailing

Surgery: removing foreign body, cardiac catheter, implanting pace maker, interventional therapy, partial radiography, local photography, and other work.

II. Features

1. High quality combined high frequency high voltage xray generator reduces xray dose to body.

2. With function of kV, mA automatically track (ABS) in fluoroscopy to make the image brightness and clearness

3. Real time continuous Pulse Fluoroscopy with low dose, but meet operation demand with clearness image

4. Human graphical LCD touch screen, intelligent and fast operation

5. A unique hand-held controller design, convenient to operate

6. Toshiba image intensifier and Medical Mega-pixels digital CCD camera, the quality is stable and reliable, and image clarity

7. Powerful digital graphic workstation with standard configuration of DICOM 3.0 connected to network perfectly, and perfect software

8. Unique design of electric auxiliary support arm is more security for using.

9. New C-arm frame with a compact appearance, and easy to operate

10. Digital radiography with powerful processing program

11. Automatically store the last image of fluoroscopy to advantage diagnosis

III. Configuration

No.

Item

Quantity

1

Main frame of C-arm

1

2

X-ray generator and high frequency inverted power supply

1

3

Toshiba 9’’ image intensifier

1

4

Medical Mega-pixels digital CCD camera

1

5

Digital Acquisition and Processing workstation

1

6

19’’ LCD monitor

2

7

Imported minigroove grid

1

8

Electric adjustable collimator

1

9

Hand controller

1

10

Red light cross localization

1

Performance and Parameter

Category

Item

Content

Fluoroscopy/ Photography

High Frequency Inverter Power Supply

Output Power:3.5kW

Inverter Frequency:40kHz

Automatic Fluoroscopy

Tube Voltage: 40kV-110kV        automatic adjustment

Tube Current:0.3mA-4mA         automatic adjustment

Manual Fluoroscopy

Tube Voltage:40kV-110kV continuous adjustment

Tube Current:0.3mA-4mA continuous adjustment

Pulse Fluoroscopy

Tube Voltage:40kV-110kV continuous adjustment

Tube Current:0.3mA-8mA continuous adjustment

0.1-10 Frame/s

Photography

Tube Voltage, mA, mAs

40 kV-110 kV

20-63mA

1-125 mAs

Plate holder Size

200mm×250mm(8″×10)or

250mm×300mm10″×12″)

X-ray Tube

X-ray Tube Special for High Frequency

Fixed anode Dual-focus: 0.3/ 1.5mm

Anode Thermal Capacity:35kJ

Video

System

Image Intensifier

TOSHIBA 9" image intensifier

CCD Video camera

Medical Mega-pixels digital CCD camera

Monitor

19’’ LCD monitor

Work Station Software

Storage without damage, multi-images display, image W/L real time adjustment, grayscale switch, region of interest balance, GAMMA correction, flip, noise reduction, intensifying, smoothing, sharpening, compression, zoom in, measurement, remark, picture-text typeset print, expert template, DICOM image transmit, DICOM image print, cineloop, image imprinting, Worklist registration etc.

Structural performance

Directive wheel

Direction wheel 360°rotation, main wheel ±90°rotation

C-arm

Electric Ascending & Descending of pillar movement: 400mm

Forward and Backward Movement: 200mm
Revolution around Horizontal Axis:  ±180°
Revolution around Vertical Axis:  ±15°

Slip on orbit: 120°(+90° -30°)


SID: 960mm     Opening: 750mm    Arc depth: 640mm
