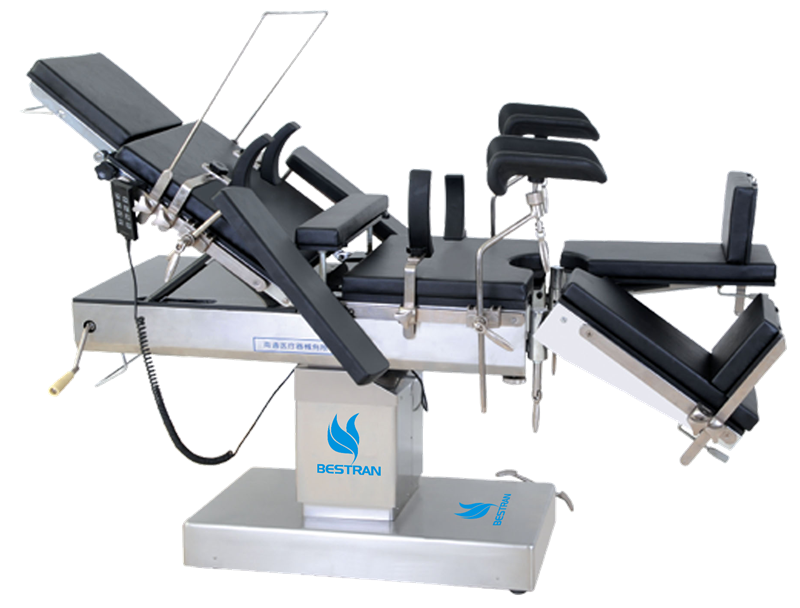

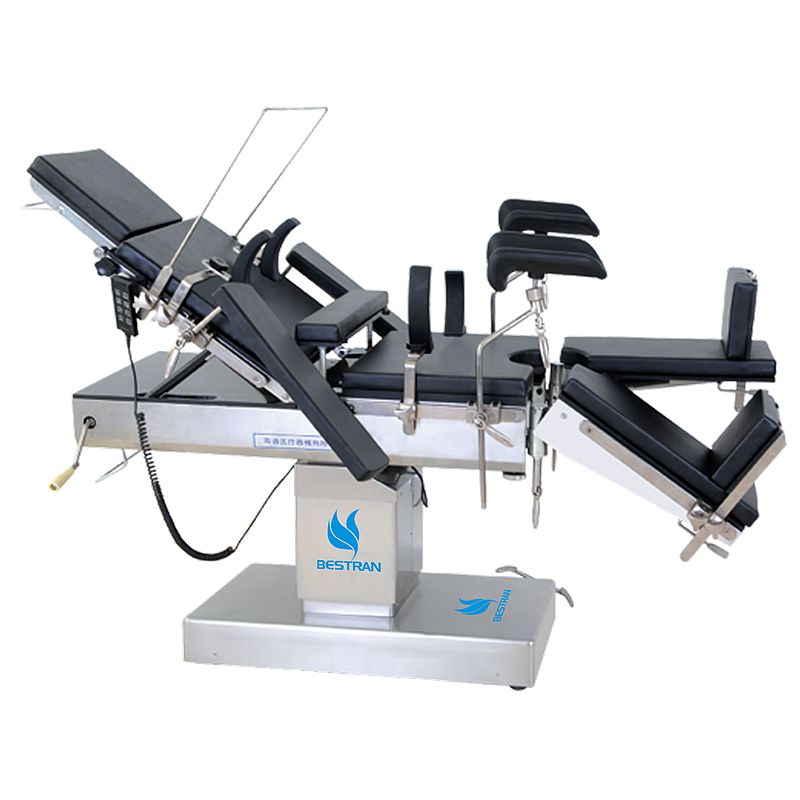

Electric-motor operating table
Electric-motor operating table
BT-RA014
Main feature:
longitudinal movement 400mm,with emergency power,suitable for x-ray and c-arm,besides backrest upward and footrest downward are gas spring operated, all other movement are controlled electrically
Overall Dimension of table：2100mm*500mm*750-1000mm
Dimension of section：
Head Section:250×500mm;Back Section:545×500mm;Seat section:450×500mm;Leg Section:600×240mm;Kidney Bridge:75×500mm;Foot Section:180×273mm
Range of movements：
1)Reversed Trendelenburg:≥20°Trendelenburg:≥15°
2)Lateral Tilt:≥15°
3)Backward and Forward Movements: ≥400mm
4)Head Section Raised from the horizontal: ≥45°
5)Head Section lowered from the horizontal:≥90°
6)Back Section Raised from the horizontal:≥45°
7)Kidney Bridge Elevated:≥80mm
8)Leg Section Lowered from the horizontal………………………………≥90°
9)Leg section opened…………………………………≥90°
10)safe working load……………………………………………………135kg
11)Lifting speed…………………………………………………………4～16mm/s
12)Foot and leg board board into a horizontal or vertical.
13)Device safety sort I B
14)Ingress Protection：IPX4
15)Power：（AC）220V，50Hz
16) Internal electric source:（DC）24V
17)Battery capacity ≥ 2.4AH
BT-RA014
Main feature:
longitudinal movement 400mm,with emergency power,suitable for x-ray and c-arm,besides backrest upward and footrest downward are gas spring operated, all other movement are controlled electrically
Overall Dimension of table：2100mm*500mm*750-1000mm
Dimension of section：
Head Section:250×500mm;Back Section:545×500mm;Seat section:450×500mm;Leg Section:600×240mm;Kidney Bridge:75×500mm;Foot Section:180×273mm
Range of movements：
1)Reversed Trendelenburg:≥20°Trendelenburg:≥15°
2)Lateral Tilt:≥15°
3)Backward and Forward Movements: ≥400mm
4)Head Section Raised from the horizontal: ≥45°
5)Head Section lowered from the horizontal:≥90°
6)Back Section Raised from the horizontal:≥45°
7)Kidney Bridge Elevated:≥80mm
8)Leg Section Lowered from the horizontal………………………………≥90°
9)Leg section opened…………………………………≥90°
10)safe working load……………………………………………………135kg
11)Lifting speed…………………………………………………………4～16mm/s
12)Foot and leg board board into a horizontal or vertical.
13)Device safety sort I B
14)Ingress Protection：IPX4
15)Power：（AC）220V，50Hz
16) Internal electric source:（DC）24V
17)Battery capacity ≥ 2.4AH
